GREEN PIN THEATRE SHACKLE SCREW PIN 1” (GPBHBB25)

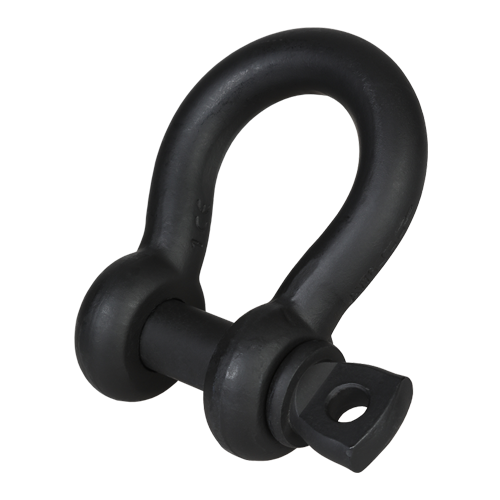

The Green Pin® Theatre Shackle Screw Pin 1" (GPBHBB25) from Vancouver Rigging Supply Ltd. delivers engineered performance for Canadian entertainment venues. This matte black bow shackle, designed for minimal light reflection, integrates seamlessly into stage setups.

Key Specifications:

• Working Load Limit: 8-1/2 t
• Bow Diameter: 1" (25.4 mm)
• Pin Diameter: 1 1/8" (28.6 mm)
• Eye Diameter: 2 5/16" (58.7 mm)
• Inside Width: 1 11/16" (42.9 mm)
• Inside Length: 3 3/4" (95.3 mm)
• Total Length: 6 15/32" (164.3 mm)
• Net Weight: 4.86 lbs (2.2 kg)

Engineering Features:

• Material: High tensile steel, Grade 6, quenched and tempered
• Safety Factor: Minimum Breaking Load = 6 x Working Load Limit
• Temperature Range: -40°C to +200°C
• Finish: Matte black for reduced visibility

Industry Applications:

• Theatre and Stage Productions
• Concert Venues
• Film and Television Studios
• Exhibition Halls

Compliance and Standards:

• EN 13889
• US Federal Specification RR-C-271 Type IVA Class 2, Grade A (2 t and above)
• ASME B30.26 (2 t and above)

The screw collar pin design facilitates assembly and disassembly in dynamic rigging environments. A chamfered eye reduces rope wear, addressing the needs of frequent setup changes in entertainment rigging.

For procurement inquiries, select the 'Add to Quote' button to initiate the quotation process for this Green Pin® Theatre Shackle.
