GREEN PIN TAPERED PIN ROV SHACKLE WITH F HANDLE 2" (POGHBB50ROVRLTF)

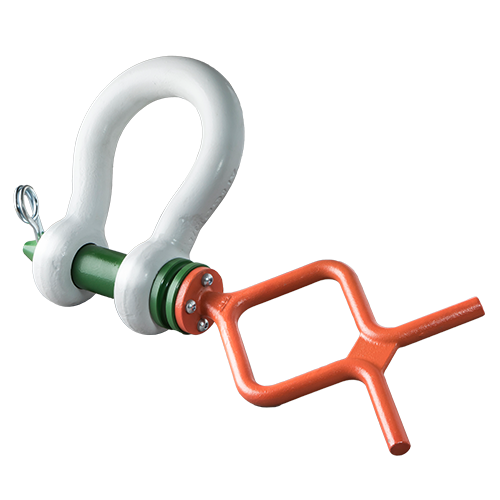

The Green Pin® Tapered Pin ROV Shackle F (POGHBB50ROVRLTF) is a grade 8 shackle engineered for subsea release and retrieve operations with remotely operated vehicles (ROVs). This shackle, available through Vancouver Rigging Supply Ltd., features a fishtail-handle and tapered pin ending, facilitating underwater assembly and ROV manipulation.

Key specifications include:

• Working Load Limit: 35 t
• Bow Diameter: 2" (50.8 mm)
• Pin Diameter: 2 1/4" (57.15 mm)
• Eye Diameter: 4 3/8" (111.125 mm)
• Eye Width: 1 31/32" (50 mm)
• Inside Width: 3 9/32" (83.34 mm)
• Inside Length: 7 3/4" (196.85 mm)
• Bow Width: 5 7/16" (138.11 mm)
• Total Length: 13 1/32" (331.15 mm)
• Bolt Length: 21 31/32" (557.86 mm)
• Width: 9 3/8" (238.125 mm)
• Diameter: 11/32" (8.73 mm)
• Net Weight: 43.8 LBS (19.87 kg)

The shackle's design incorporates safety features such as firmly attached handles with bolts and Nord-Lock® rings, and pin head grooves for wire rope attachment. The white shackle body and orange handle improve underwater visibility. The fully chambered screw thread on the pin protects slings from wear.

This Green Pin® shackle supports both inline and side loading, with applicable reduction factors. It serves industries involved in offshore operations, marine construction, and subsea exploration across Canada.

To obtain pricing information for the Green Pin® Tapered Pin ROV Shackle F (POGHBB50ROVRLTF), click the 'Add to Quote' button on this page.
