GREEN PIN TAPERED PIN ROV SHACKLE WITH F HANDLE 2-1/2" (POGHBB65ROVRLTF)

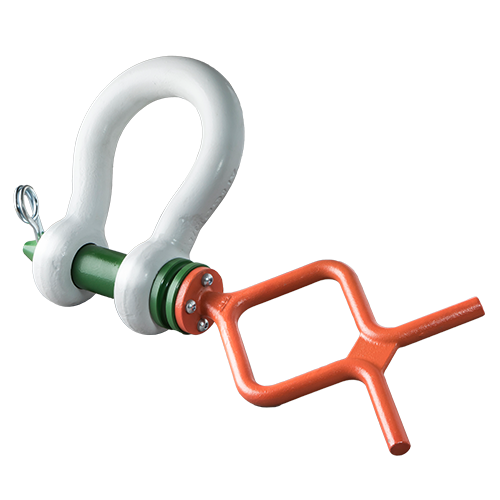

The Green Pin® Tapered Pin ROV Shackle F (POGHBB65ROVRLTF) is a grade 8 shackle engineered for subsea operations. This 55 t capacity shackle features a fishtail handle and tapered pin end, facilitating underwater assembly and manipulation by remotely operated vehicles (ROVs).

Key specifications:

• Working Load Limit: 55 t
• Bow Diameter: 2 1/2" (63.5 mm)
• Pin Diameter: 2 3/4" (69.85 mm)
• Eye Diameter: 5 23/32" (145.26 mm)
• Inside Width: 4 1/8" (104.78 mm)
• Inside Length: 10 1/4" (260.35 mm)
• Overall Length: 17 1/16" (433.39 mm)
• Bolt Length: 24 3/8" (619.13 mm)
• Net Weight: 87.3 LBS (39.6 kg)

The shackle's design incorporates several features for underwater use:

• White-coated body and orange handle for improved visibility
• Tapered pin end for easier underwater assembly
• Grooved pin head for wire rope attachment to shackle body
• Chambered screw thread to protect slings from wear

This shackle supports both inline and side loading, with applicable reduction factors. It meets industry standards for offshore and marine applications, including oil and gas exploration, underwater construction, and salvage operations.

For Canadian companies seeking rigging solutions for their marine projects, click the 'Add to Quote' button to request pricing information for the Green Pin® Tapered Pin ROV Shackle F.
