GREEN PIN TAPERED PIN ROV SHACKLE WITH F HANDLE 1-1/8" (POGHBB28ROVRLTF)

The Green Pin® Tapered Pin ROV Shackle F (POGHBB28ROVRLTF) is a grade 8 shackle engineered for underwater operations. This product, available through Vancouver Rigging Supply Ltd., meets the demands of subsea release and retrieval tasks using remotely operated vehicles (ROVs).

Key specifications include:

• Working Load Limit: 9.5 t
• Bow Diameter: 1 1/8" (28.58 mm)
• Pin Diameter: 1 1/4" (31.75 mm)
• Eye Diameter: 2 19/32" (65.88 mm)
• Eye Width: 1 3/8" (34.93 mm)
• Inside Width: 1 7/8" (47.63 mm)
• Inside Length: 4 1/4" (107.95 mm)
• Bow Width: 2 15/16" (74.61 mm)
• Overall Length: 7 9/32" (185.01 mm)
• Bolt Length: 17 29/32" (454.79 mm)
• Width: 5 5/32" (131.01 mm)
• Diameter: 7/32" (5.56 mm)
• Net Weight: 8.07 LBS (3.66 kg)

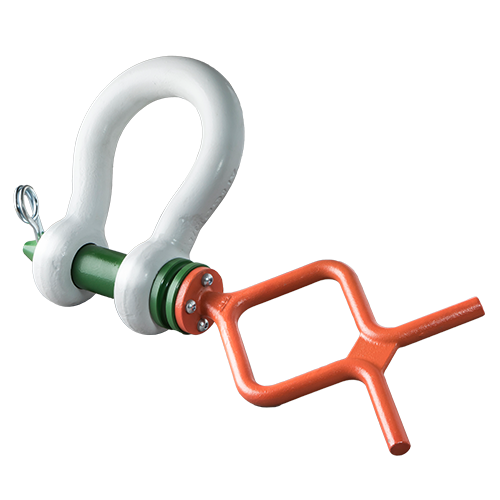

This shackle features a fishtail handle and tapered pin end, facilitating underwater assembly. The handle, secured with bolts and Nord-Lock® rings, allows for manipulation by hydraulic ROV arms. Wire rope can be used to attach the pin to the shackle body via grooves in the pin head.

The white shackle body and orange handle improve underwater visibility. A chambered screw thread on the pin protects slings from wear. The shackle supports both inline and side loading, with applicable reduction factors.

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater salvage operations. Its design addresses the challenges of deep-sea environments and remote manipulation.

For procurement inquiries in Canada, use the 'Add to Quote' button to initiate a quote request for the Green Pin® Tapered Pin ROV Shackle F.
