GREEN PIN TAPERED PIN ROV SHACKLE WITH F HANDLE 1-1/2" (POGHBB38ROVRLTF)

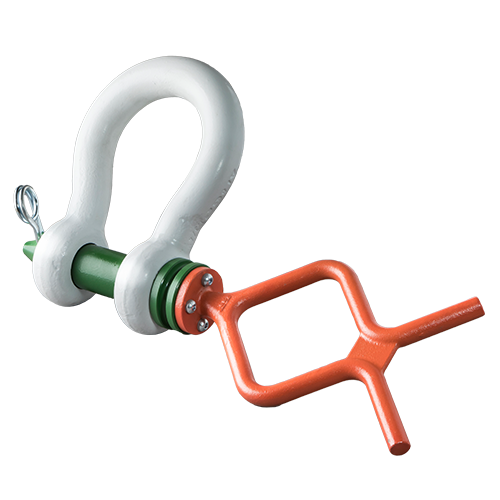

The Green Pin® Tapered Pin ROV Shackle F (POGHBB38ROVRLTF) is a grade 8 shackle engineered for subsea operations involving remotely operated vehicles (ROVs). This shackle, available through Vancouver Rigging Supply Ltd., features a fishtail handle and tapered pin end, facilitating underwater assembly and retrieval.

Key specifications include:

• Working Load Limit: 17 t
• Bow Diameter: 1 1/2" (38 mm)
• Pin Diameter: 1 5/8" (41 mm)
• Eye Diameter: 3 15/32" (88 mm)
• Eye Width: 1 17/32" (39 mm)
• Inside Width: 2 11/32" (60 mm)
• Inside Length: 5 3/4" (146 mm)
• Bow Width: 3 29/32" (99 mm)
• Total Length: 9 13/16" (249 mm)
• Bolt Length: 19 11/32" (491 mm)
• Width: 6 7/8" (175 mm)
• Diameter: 11/32" (9 mm)
• Net Weight: 18.1 LBS (8.2 kg)

The shackle's design incorporates several features for ROV manipulation:

• Fishtail handle: Enables control by hydraulic ROV arms
• Tapered pin end: Aids in underwater assembly
• Grooved pin head: Allows wire rope attachment to shackle body
• Chambered screw thread: Protects slings from wear

The white shackle body and orange handle improve underwater visibility. This shackle supports both inline and side loading, with applicable reduction factors. It meets industry standards for offshore and marine applications, including oil and gas exploration, underwater construction, and oceanographic research.

For Canadian companies requiring ROV-compatible rigging solutions, click the 'Add to Quote' button to request pricing information from Vancouver Rigging Supply Ltd.
