GREEN PIN TAPERED PIN ROV SHACKLE WITH D HANDLE 7/8" (POGHBB22ROVRLTD)

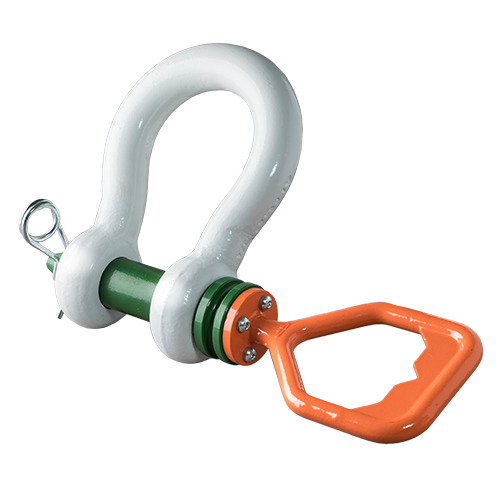

The Green Pin® Tapered Pin ROV Shackle D (POGHBB22ROVRLTD) is engineered for subsea release and retrieve operations using remotely operated vehicles (ROVs). This grade 8 shackle features a D-handle and tapered pin ending, facilitating underwater assembly and manipulation by hydraulic ROV arms.

Key specifications:

• Working Load Limit (WLL): 6.5 t
• Bow Diameter: 7/8" (22 mm)
• Pin Diameter: 1" (25 mm)
• Eye Diameter: 2 1/16" (52 mm)
• Inside Width: 1 7/16" (37 mm)
• Inside Length: 3 9/32" (83 mm)
• Overall Length: 5 21/32" (144 mm)
• Net Weight: 8.35 lbs (3.79 kg)

The shackle's design incorporates safety features such as bolt and Nord-Lock® ring attachments for the handle, and pin head grooves for wire rope securing. The white shackle body and orange handle improve underwater visibility, while the chambered screw thread protects slings from wear.

This product is compatible with both inline and side loading applications, with applicable reduction factors. It serves industries including offshore oil and gas, marine construction, and underwater research operations across Canada.

The Green Pin® Tapered Pin ROV Shackle D meets international standards for marine and offshore equipment. To inquire about this product for your Canadian operations, use the 'Add to Quote' button on this page.
