GREEN PIN TAPERED PIN ROV SHACKLE WITH D HANDLE 1-1/8" (POGHBB28ROVRLTD)

The Green Pin® Tapered Pin ROV Shackle D (POGHBB28ROVRLTD) is engineered for underwater operations involving remotely operated vehicles (ROVs). This grade 8 shackle features a D-handle and tapered pin end, facilitating subsea release and retrieval tasks.

Key specifications:

• Working Load Limit: 9.5 t
• Bow Diameter: 1 1/8" (28.575 mm)
• Pin Diameter: 1 1/4" (31.75 mm)
• Eye Diameter: 2 19/32" (65.8875 mm)
• Eye Width: 1 1/8" (28.575 mm)
• Inside Width: 1 7/8" (47.625 mm)
• Inside Length: 4 1/4" (107.95 mm)
• Bow Width: 2 15/16" (74.6125 mm)
• Overall Length: 7 9/32" (184.9375 mm)
• Bolt Length: 15" (381 mm)
• Width: 5 5/32" (131.0375 mm)
• Diameter: 7/32" (5.55625 mm)
• Net Weight: 11.9 LBS (5.398 kg)

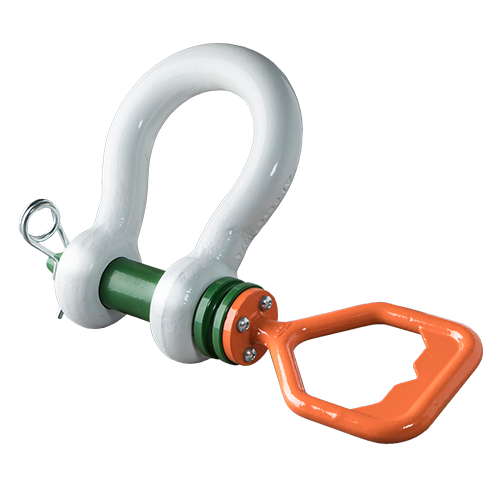

This shackle's design addresses underwater assembly challenges. The D-handle, secured with bolts and Nord-Lock® rings, allows for manipulation by hydraulic ROV arms. Wire rope can be used to attach the pin to the shackle body via grooves in the pin head.

The white-coated body and orange handle improve underwater visibility. A fully chambered screw thread on the pin protects slings from wear. This shackle supports both inline and side loading, with applicable reduction factors.

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater salvage operations across Canada. It is compatible with various rigging configurations for lifting, towing, and anchoring tasks in subsea environments.

To obtain pricing information for the Green Pin® Tapered Pin ROV Shackle D (POGHBB28ROVRLTD), click the 'Add to Quote' button on this page.
