GREEN PIN TAPERED PIN ROV SHACKLE WITH D HANDLE 1-1/4" (POGHBB32ROVRLTD)

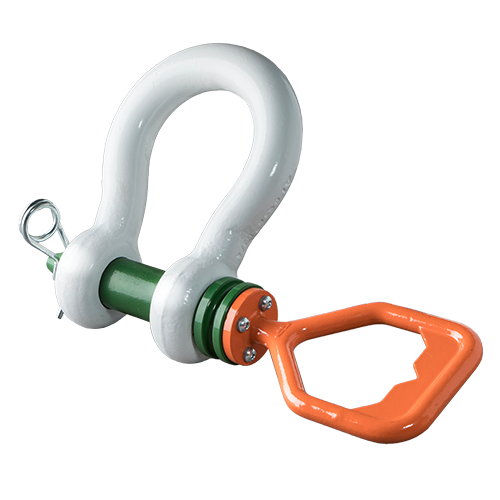

The Green Pin® Tapered Pin ROV Shackle D (POGHBB32ROVRLTD) is engineered for subsea release and retrieve operations using remotely operated vehicles (ROVs). This grade 8 shackle features a D-handle and tapered pin ending, facilitating underwater assembly and manipulation by hydraulic ROV arms.

Key specifications include:

• Working Load Limit (WLL): 12 t
• Bow Diameter: 1 1/4" (31.75 mm)
• Pin Diameter: 1 3/8" (34.93 mm)
• Eye Diameter: 2 27/32" (72.23 mm)
• Inside Width: 2" (50.8 mm)
• Inside Length: 4 17/32" (115.09 mm)
• Overall Length: 7 29/32" (200.81 mm)
• Net Weight: 14.3 lbs (6.49 kg)

The shackle's design incorporates safety features such as Nord-Lock® rings and bolt-secured handles. Pin head grooves allow wire rope attachment to the shackle body. The white-coated body and orange handle improve underwater visibility.

This ROV shackle supports both inline and side loading, with applicable reduction factors. Its fully chambered screw thread protects slings from wear. The product is part of a range with WLLs from 6.5 t to 55 t.

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater salvage operations across Canada. For pricing information, click the 'Add to Quote' button to request a quote from Vancouver Rigging Supply Ltd.
