GREEN PIN TAPERED PIN ROV SHACKLE WITH D HANDLE 1-1/2" (POGHBB38ROVRLTD)

The Green Pin® Tapered Pin ROV Shackle D (POGHBB38ROVRLTD) is an engineered solution for subsea operations, distributed by Vancouver Rigging Supply Ltd. across Canada. This grade 8 shackle features a D-handle and tapered pin end, specifically designed for remote-controlled vehicle (ROV) use in underwater release and retrieval tasks.

Key specifications include:

• Working Load Limit (WLL): 17 t
• Bow Diameter: 1 1/2" (38 mm)
• Pin Diameter: 1 5/8" (41 mm)
• Eye Diameter: 3 15/32" (88 mm)
• Inside Width: 2 11/32" (60 mm)
• Inside Length: 5 3/4" (146 mm)
• Overall Length: 9 13/16" (249 mm)
• Bolt Length: 16 13/32" (417 mm)
• Net Weight: 18.1 lbs (8.2 kg)

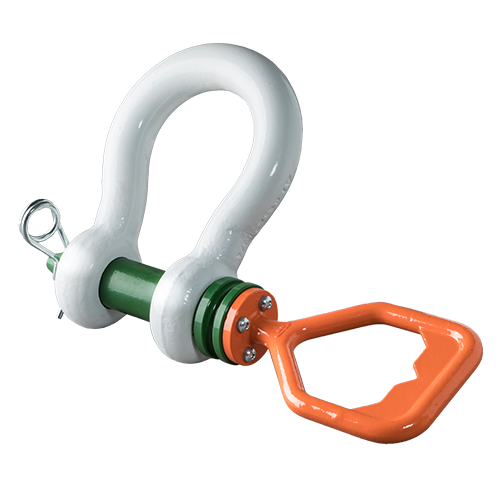

This shackle's design prioritizes underwater functionality. The tapered pin facilitates assembly in submerged environments, while the white-coated body and orange handle improve visibility. The handle, secured with bolts and Nord-Lock® rings, allows for manipulation by ROV hydraulic arms.

Safety features include grooves on the pin head for wire rope attachment and a fully chambered screw thread to minimize sling wear. The shackle supports both inline and side loading, with applicable reduction factors.

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater salvage operations. Its design addresses the challenges of subsea rigging, offering a solution for companies engaged in deep-sea exploration and infrastructure maintenance.

To inquire about the Green Pin® Tapered Pin ROV Shackle D for your Canadian operations, click the 'Add to Quote' button on this page.
