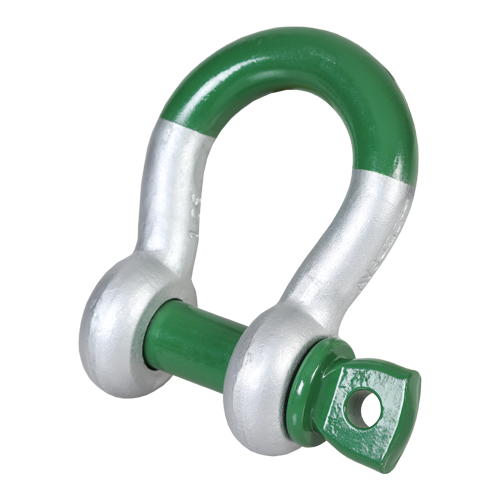

GREEN PIN SUPER BOW SHACKLE SCREW PIN 7/8” (SUGHBB22)

The Green Pin® Super Bow Shackle Screw Pin 7/8" (SUGHBB22) is a grade 8 bow shackle engineered for Canadian rigging applications. This G-5261 model, available through Vancouver Rigging Supply Ltd., features a screw pin design for assembly and disassembly in various industrial settings.

Key Specifications:

• Bow diameter: 7/8" (22.2 mm)
• Pin diameter: 1" (25.4 mm)
• Eye diameter: 2 1/16" (52.4 mm)
• Inside width: 1 13/32" (35.7 mm)
• Inside length: 3 9/32" (83.3 mm)
• Overall length: 5 21/32" (143.7 mm)
• Bolt length: 4 11/16" (119.1 mm)
• Net weight: 3.31 lbs (1.5 kg)

Engineering Specifications:

• Material: Alloy steel, Grade 8, quenched and tempered
• Safety factor: Minimum Breaking Load (MBL) = 5 x Working Load Limit (WLL)
• Finish: Hot dipped galvanized
• Temperature range: -20°C to +200°C
• Working Load Limit: Ranges from 3.3t to 85t

Certifications:

• ASME B30.26
• Meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B

Applications:

• Oil and gas operations
• Marine and offshore industries
• Construction projects
• Manufacturing facilities
• Transportation and logistics

The Green Pin® Super Bow Shackle Screw Pin is designed for industries requiring frequent assembly and disassembly of rigging components. Its galvanized finish contributes to long-term use in various environmental conditions. The shackle's eye design minimizes wear on wire ropes and other connected components.

For pricing and availability of the Green Pin® Super Bow Shackle Screw Pin 7/8" (SUGHBB22), click the 'Add to Quote' button to submit an inquiry to Vancouver Rigging Supply Ltd.
