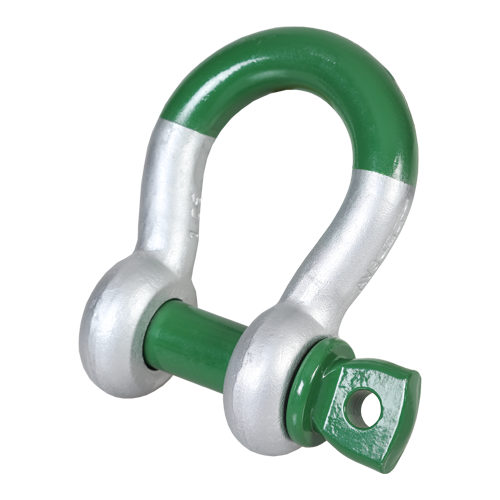

GREEN PIN SUPER BOW SHACKLE SCREW PIN 1-3/8” (SUGHBB35)

The Green Pin® Super Bow Shackle Screw Pin 1-3/8" (SUGHBB35) is a grade 8 bow shackle designed for frequent assembly and disassembly in rigging operations. This product, available for Canadian distribution through Vancouver Rigging Supply Ltd., is engineered to meet the needs of industries requiring durable and reliable rigging components.

Product Specifications:

• Our Part Number: SUGHBB35
• Product Code: G-5261
• Bow Diameter: 1 3/8" (35 mm)
• Pin Diameter: 1 1/2" (38 mm)
• Eye Diameter: 3 1/8" (79 mm)
• Eye Width: 1 3/8" (35 mm)
• Inside Width: 2 1/4" (57 mm)
• Inside Length: 5 1/4" (133 mm)
• Bow Width: 3 5/8" (92 mm)
• Total Length: 8 15/16" (227 mm)
• Bolt Length: 7 5/16" (186 mm)
• Overall Width: 6 3/8" (162 mm)
• Net Weight: 12.3 lbs (5.6 kg)

Technical Details:

• Material: Alloy steel bow and pin, Grade 8, quenched and tempered
• Safety Factor: Minimum breaking load equals 5 times the working load limit
• Finish: Hot dipped galvanized for corrosion resistance
• Temperature Range: -20°C to +200°C
• Working Load Limit Range: 3.3t to 85t

Certifications and Standards:

• ASME B30.26
• Meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B

Applications:

This Green Pin® Super Bow Shackle is engineered for use in various industries across Canada, including:

• Construction and infrastructure projects
• Marine and offshore operations
• Mining and resource extraction
• Heavy machinery and equipment manufacturing
• Renewable energy installations

The screw pin design allows for efficient assembly and disassembly, making it a solution for operations that require frequent rigging changes. The galvanized finish provides durability in various environmental conditions, while the hidden screw thread in the shackle eye minimizes wear on counter components such as wire rope.

For procurement inquiries or to request a quote for the Green Pin® Super Bow Shackle Screw Pin 1-3/8" (SUGHBB35), please click the 'Add to Quote' button on this page.
