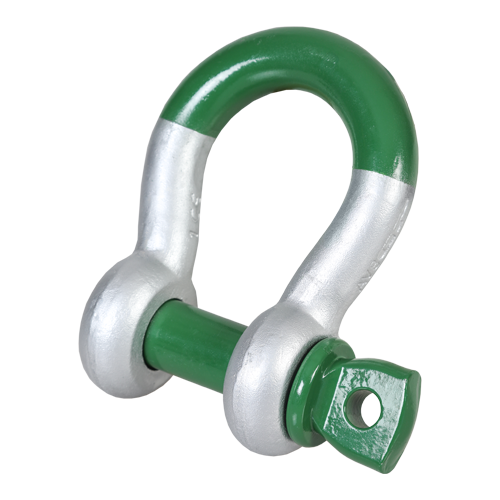

GREEN PIN SUPER BOW SHACKLE SCREW PIN 1-1/4” (SUGHBB32)

The Green Pin® Super Bow Shackle Screw Pin 1-1/4" (SUGHBB32) is a grade 8 bow shackle engineered for rigging operations across Canada. This G-5261 model, part number SUGHBB32, is constructed from alloy steel and hot-dip galvanized for corrosion resistance.

Key specifications include:

• Bow diameter: 1 1/4" (31.75 mm)
• Pin diameter: 1 3/8" (34.93 mm)
• Eye diameter: 2 7/8" (73.03 mm)
• Inside width: 2" (50.8 mm)
• Inside length: 4 17/32" (115.09 mm)
• Overall length: 7 29/32" (200.81 mm)
• Bolt length: 6 11/16" (169.86 mm)
• Net weight: 9.49 lbs (4.3 kg)

This shackle operates in temperatures from -20°C to +200°C and meets ASME B30.26 standards. It also fulfills performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B.

The Green Pin® Super Bow Shackle finds applications in:

• Construction sites
• Shipyards
• Oil and gas operations
• Mining projects
• Forestry operations

With a safety factor where the minimum breaking load equals 5 times the working load limit, this shackle is engineered for Canadian industries requiring robust rigging solutions.

For pricing information on the Green Pin® Super Bow Shackle Screw Pin 1-1/4" (SUGHBB32), click the 'Add to Quote' button to request a quote.
