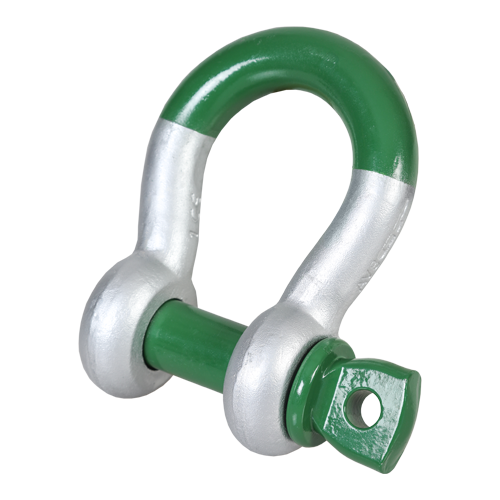

GREEN PIN SUPER BOW SHACKLE SCREW PIN 1-1/2" (SUGHBB38)

The Green Pin® Super Bow Shackle Screw Pin 1-1/2" (SUGHBB38) is a grade 8 bow shackle engineered for Canadian rigging operations. This G-5261 model, distributed by Vancouver Rigging Supply Ltd., features a screw pin design for assembly and disassembly in frequent rigging tasks.

Key specifications of the SUGHBB38 include:

• Bow diameter: 1 1/2" (38 mm)
• Pin diameter: 1 5/8" (41 mm)
• Eye diameter: 3 15/32" (88 mm)
• Inside width: 2 3/8" (60 mm)
• Inside length: 5 3/4" (146 mm)
• Overall length: 9 13/16" (249 mm)
• Bolt length: 8" (203 mm)
• Net weight: 16.4 lbs (7.4 kg)

This Green Pin® Super Bow Shackle is constructed from alloy steel, quenched and tempered to Grade 8 standards. It offers a working load limit range up to 85t, with a minimum breaking load of 5 times the WLL. The hot-dipped galvanized finish provides corrosion resistance for extended use in various environments.

The shackle operates in temperatures from -20°C to +200°C, adhering to ASME B30.26 standards and meeting performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B. Its design includes a chamber in the shackle eye to protect the screw thread, minimizing wear on wire ropes and other connected components.

Industries benefiting from this shackle include construction, marine operations, oil and gas, and heavy manufacturing. Its compact size and reduced weight, compared to non-Super products with equivalent working load limits, make it advantageous for lifting and securing loads in space-constrained areas.

To obtain pricing information for the Green Pin® Super Bow Shackle Screw Pin 1-1/2" (SUGHBB38), click the 'Add to Quote' button on this page.
