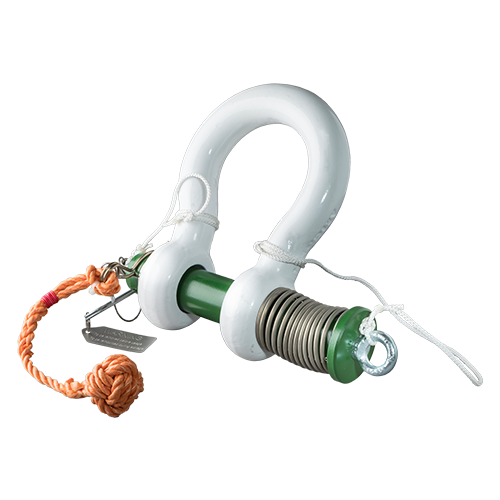

GREEN PIN SPRING RELEASE ROV SHACKLE 4-1/8" (HDPOHM0150ROVSRL)

The Green Pin® Spring Release ROV Shackle 4-1/8" (HDPOHM0150ROVSRL) is a grade 8 shackle engineered for subsea release operations using remotely operated vehicles (ROVs). This shackle, with a working load limit of 150 t, features a quick release system operable by hydraulic ROV arms, maintaining operational safety.

Key specifications include:

• Diameter: bow 4 1/8" (105 mm), pin 4 1/4" (108 mm), eye 9 3/8" (238 mm)
• Width: inside 6 5/8" (168 mm), bow 10 13/16" (275 mm), overall 19 1/8" (486 mm)
• Length: inside 16 5/32" (410 mm), overall 27 3/32" (688 mm), bolt 28 19/32" (726 mm)
• Net weight: 370 lbs (168 kg)
• Temperature range: -40°C to +200°C (-40°F to +392°F)

The Green Pin® Spring Release ROV Shackle is constructed from alloy steel, quenched and tempered to grade 8 standards. Its bow is painted white, while the pin is green for clear identification. The shackle's minimum breaking load (MBL) is five times its working load limit, adhering to stringent safety standards.

This shackle is designed for in-line use and can be assembled with wire rope slings and a monkey's fist. For sizes with a working load limit of 42.5 t and above, including this 150 t model, a special compression tool (sold separately) is required for assembly.

Industries that can benefit from this shackle include offshore oil and gas, marine construction, and deep-sea exploration. Its ability to function in extreme temperatures makes it suitable for Arctic and sub-Arctic operations.

The Green Pin® Spring Release ROV Shackle meets numerous international standards and certifications, ensuring compliance with industry regulations.

For pricing and availability in Canada, click the 'Add to Quote' button to request a quote from Vancouver Rigging Supply Ltd.
