PRODUCT CODE: P-5367 | PART NUMBER: HDPOHM0120ROVSRL

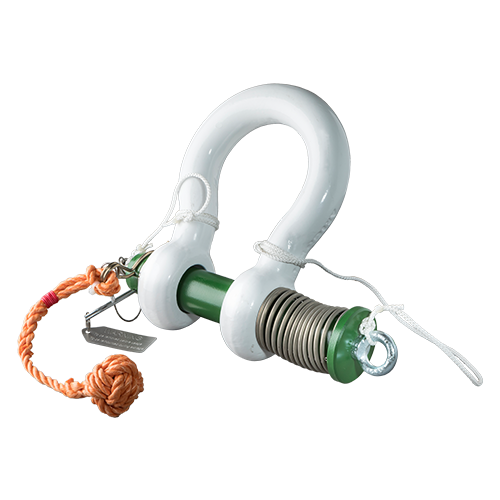

GREEN PIN SPRING RELEASE ROV SHACKLE 3-3/4" (HDPOHM0120ROVSRL)

The Green Pin® Spring Release ROV Shackle 3-3/4" (HDPOHM0120ROVSRL) is a grade 8 shackle engineered for subsea release operations with remotely operated vehicles (ROVs). This product, available through Canadian distribution, features a working load limit of 120 t and is constructed from alloy steel, quenched and tempered to grade 8 specifications.

Key Specifications:

  • Diameter (bow and pin): 3 3/4" (95 mm)
  • Eye diameter: 8 3/16" (208 mm)
  • Inside width: 5 25/32" (147 mm)
  • Inside length: 15 23/32" (399 mm)
  • Overall length: 25 7/16" (646 mm)
  • Bolt length: 27 1/32" (687 mm)
  • Net weight: 271 lbs (123 kg)

Performance and Safety:

  • Minimum breaking load: 5 times the working load limit
  • Temperature range: -40°C to +200°C
  • Subsea functionality: Operable at temperatures as low as -60°C

Design Features:

  • Spring release mechanism: Facilitates quick disassembly by ROV hydraulic arms
  • Finish: Shackle bow painted white, pin painted green for visibility
  • Assembly: Requires compression tool for sizes with WLL of 42.5 t and above

Applications:

  • Offshore oil and gas: Subsea rigging and lifting operations
  • Marine construction: Underwater structure installation and maintenance
  • Oceanographic research: Deep-sea equipment deployment and retrieval

Compliance:

  • Meets industry standards for subsea rigging equipment
  • Conforms to relevant certifications for marine and offshore use

This Green Pin® Spring Release ROV Shackle is designed for in-line use only and can be assembled with wire rope slings and a monkey's fist. For detailed specifications or to request a quote, click the 'Add to Quote' button on this page.

Size (inches): 3-3/4"
Weight (lbs): 271.0

Working Load Limit (t): 120.0
