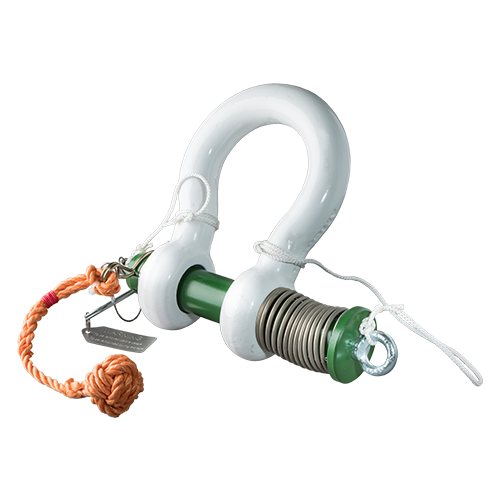

GREEN PIN SPRING RELEASE ROV SHACKLE 2-1/2" (POGHMB65ROVSRL)

The Green Pin® Spring Release ROV Shackle 2-1/2" (POGHMB65ROVSRL) is a grade 8 shackle engineered for subsea release operations using remotely operated vehicles (ROVs). This Canadian-distributed product, with part number POGHMB65ROVSRL, is designed for precise underwater rigging tasks in offshore oil and gas, marine construction, and scientific research industries.

Key specifications include:

• Working Load Limit: 55 t
• Net Weight: 92.6 lbs (42 kg)
• Bow Diameter: 2 1/2"
• Pin Diameter: 2 3/4"
• Eye Diameter: 5 23/32"
• Inside Width: 4 1/8"
• Inside Length: 10 1/4"
• Overall Length: 17 3/32"
• Bolt Length: 19 5/16"
• Overall Width: 12 3/16"

This shackle features a quick release system operable by hydraulic ROV arms, facilitating efficient underwater operations. It functions in temperatures from -60°C to +200°C, making it applicable for Arctic and deep-sea environments.

Constructed from alloy steel, the bow and pin are quenched and tempered to Grade 8 standards. The shackle bow is painted white, and the pin is green for visibility and corrosion resistance. With a safety factor where the minimum breaking load is 5 times the working load limit, this shackle adheres to stringent safety standards.

For sizes with a working load limit of 42.5 t and above, assembly requires a specialized compression tool (not included). This shackle is designed for in-line use and can be integrated with wire rope slings and a monkey's fist.

Certifications for this product include:

• DNV-GL
• ABS
• Lloyd's Register
• Bureau Veritas

To obtain pricing information and place an order for the Green Pin® Spring Release ROV Shackle 2-1/2" (POGHMB65ROVSRL), click the 'Add to Quote' button on this page.
