GREEN PIN SPRING RELEASE ROV SHACKLE 1-3/8" (POGHMB35ROVSRL)

The Green Pin® Spring Release ROV Shackle 1-3/8" (POGHMB35ROVSRL) is a grade 8 shackle engineered for subsea release operations using remotely operated vehicles (ROVs). This shackle, available through Canadian distribution, features a quick release system operable by hydraulic ROV arms, ensuring operational safety.

Product specifications:

• Working Load Limit: 13.5 t
• Net Weight: 15.4 lbs (7 kg)
• Bow Diameter: 1 3/8" (35 mm)
• Pin Diameter: 1 1/2" (38 mm)
• Eye Diameter: 3 5/32" (80 mm)
• Eye Width: 1 3/8" (35 mm)
• Inside Width: 2 1/4" (57 mm)
• Inside Length: 5 1/4" (133 mm)
• Bow Width: 3 5/8" (92 mm)
• Total Length: 8 15/16" (227 mm)
• Bolt Length: 11 7/8" (302 mm)
• Overall Width: 6 11/32" (161 mm)

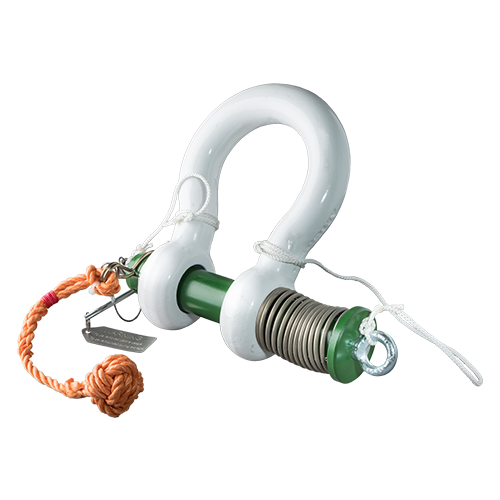

The Green Pin® Spring Release ROV Shackle operates in temperatures from -60°C to +200°C, making it applicable for arctic and deep-sea environments. The shackle bow is painted white, while the pin is green for visual differentiation.

Technical details:

• Material: Alloy steel, Grade 8, quenched and tempered
• Safety Factor: Minimum Breaking Load (MBL) equals 5 times Working Load Limit (WLL)
• Usage: In-line applications only

This shackle is designed for assembly with wire rope slings and a monkey's fist. It adheres to multiple international standards and certifications, ensuring compliance with industry regulations.

Industries benefiting from this shackle include offshore oil and gas, marine construction, and underwater research operations. Its design allows for efficient subsea rigging tasks in challenging environments.

To inquire about the Green Pin® Spring Release ROV Shackle 1-3/8" (POGHMB35ROVSRL) for your Canadian operations, click the 'Add to Quote' button on this page.
