GREEN PIN SPRING RELEASE ROV SHACKLE 1-1/4" (POGHMB32ROVSRL)

The Green Pin® Spring Release ROV Shackle 1-1/4" (POGHMB32ROVSRL) is an engineered solution for subsea release operations utilizing remotely operated vehicles (ROVs). This grade 8 shackle, distributed by Vancouver Rigging Supply Ltd., features a working load limit of 12 t and is designed for temperatures as low as -40°C up to 200°C.

Key specifications of this ROV shackle include:

• Diameter: bow 1 1/4" (32 mm), pin 1 3/8" (35 mm), eye 2 13/16" (71 mm)
• Width: eye 1 9/32" (33 mm), inside 2" (51 mm), bow 3 9/32" (83 mm)
• Length: inside 4 17/32" (115 mm), total 7 29/32" (201 mm), bolt 11 1/2" (292 mm)
• Net weight: 11.6 lbs (5.3 kg)
• Material: Alloy steel, Grade 8, quenched and tempered

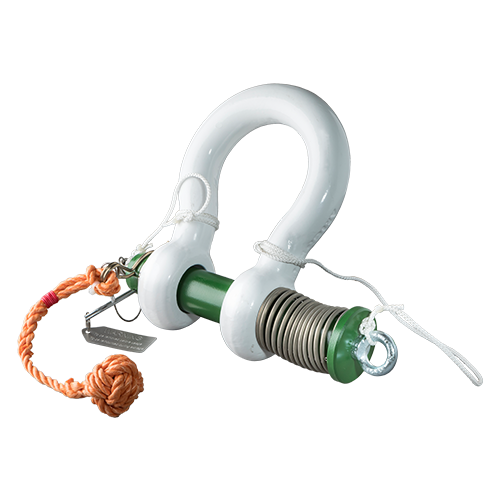

The shackle bow is painted white, while the pin is green for easy identification. This product is engineered for in-line use only and assembled with wire rope slings and a monkey's fist. The minimum breaking load (MBL) is five times the working load limit, adhering to stringent safety standards.

Industries benefiting from this ROV shackle include offshore oil and gas, marine construction, and underwater salvage operations. Its design allows for efficient manipulation by hydraulically operated ROV arms in subsea environments.

This Green Pin® product meets various international certifications, ensuring compliance with industry standards for subsea and offshore applications.

For detailed specifications and to request a quote for the Green Pin® Spring Release ROV Shackle 1-1/4" (POGHMB32ROVSRL), click the 'Add to Quote' button on this page.
