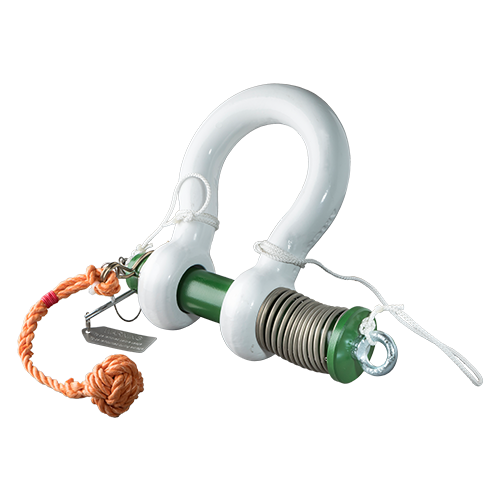

GREEN PIN SPRING RELEASE ROV SHACKLE 1-1/2" (POGHMB38ROVSRL)

The Green Pin® Spring Release ROV Shackle (1-1/2") POGHMB38ROVSRL is engineered for subsea release operations using remotely operated vehicles (ROVs). This grade 8 shackle features a quick release system operable by hydraulic ROV arms, maintaining operational safety.

Key specifications:

• Working Load Limit: 17 t
• Net Weight: 20.4 lbs (9.25 kg)
• Bow Diameter: 1 1/2" (38.1 mm)
• Pin Diameter: 1 5/8" (41.3 mm)
• Eye Diameter: 3 1/2" (88.9 mm)
• Inside Width: 2 11/32" (59.5 mm)
• Inside Length: 5 3/4" (146.1 mm)
• Overall Length: 9 13/16" (249.2 mm)
• Bolt Length: 14 5/32" (359.5 mm)
• Overall Width: 6 7/8" (174.6 mm)

The shackle operates effectively in temperatures from -60°C to +200°C, making it suitable for extreme environmental conditions. The bow is constructed from alloy steel, quenched and tempered to Grade 8 standards, with a white painted finish. The pin, also made of the same material, features a green painted finish for easy identification.

This shackle is designed for in-line use and can be assembled with wire rope slings and a monkey's fist. Manual assembly is possible for smaller sizes, while sizes with a working load limit of 42.5 t and above require a compression tool (not included).

Applications include:

• Offshore oil and gas operations
• Underwater construction projects
• Marine salvage operations
• Oceanographic research expeditions

The Green Pin® Spring Release ROV Shackle meets industry standards and certifications, ensuring compliance with maritime regulations. For detailed information on this product's capabilities and to request a quote, click the 'Add to Quote' button on this page.
