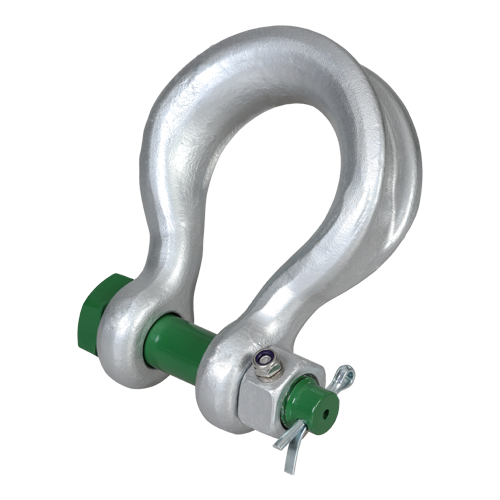

GREEN PIN SLING SHACKLE WITH SAFETY BOLT AND FIXED NUT 3-11/16" (SLGPF0150FN)

The Green Pin® Sling Shackle with Safety Bolt and Fixed Nut 3-11/16" (SLGPF0150FN) is a high-capacity bow shackle designed for heavy lifting applications across various Canadian industries. This shackle, part of the P-6013 series, boasts a working load limit of 150 t, making it suitable for substantial rigging tasks.

Key specifications include:

• Dimensions: 25 1/2" length, 17 11/16" width, 3 11/16" body diameter
• Pin diameter: 3 3/4"
• Eye dimensions: 7 1/8" diameter, 3 1/2" width
• Inside measurements: 5 25/32" width, 15 13/32" length
• Bow width: 9 31/32"
• Net weight: 309 lbs (140 kg)

The shackle features a safety bolt with M12 thread and a 5 1/2" length, requiring a torque of 75 nm. The fixed nut, measuring 1 31/32" in thickness, is securely attached to the pin head using bolts and Nord-Lock® washers, providing triple safety against loosening in dynamic or high-vibration environments.

Constructed from alloy steel (Grade 8, quenched and tempered), this shackle operates within a temperature range of -40°C to +200°C. The bow is painted silver, while the pin is painted green for easy identification.

The increased bow radius of this sling shackle reduces wear on wire ropes, potentially allowing for the use of lighter cables without compromising load capacity. This design characteristic can lead to cost savings in wire rope expenses for Canadian operations in construction, offshore, and heavy industry sectors.

Certifications for this product include Lloyd's proofload test certificate for shackles rated at 75 t and above, ensuring compliance with rigorous safety standards.

For pricing information and to place an order for the Green Pin® Sling Shackle with Safety Bolt and Fixed Nut 3-11/16" (SLGPF0150FN), click the 'Add to Quote' button on this page to request a quote tailored to your specific project requirements.
