GREEN PIN POWER SLING SHACKLE SAFETY BOLT N/A (SLPGP0300)

The Green Pin® Power Sling Shackle Safety Bolt N/A (SLPGP0300) from Vancouver Rigging Supply Ltd. delivers exceptional performance for heavy lifting applications across Canada. This shackle, part of the Green Pin® Power Sling® series, features a bending efficiency of 85% and a crown 10% wider than previous generations.

Key specifications include:

• Pin diameter: 5 9/32" (134 mm)
• Eye diameter: 10 1/4" (260 mm)
• Inside width: 7 7/16" (189 mm)
• Inside length: 23 5/8" (600 mm)
• Overall length: 40 5/8" (1032 mm)
• Overall width: 23 25/32" (604 mm)
• Bolt length: 21 21/32" (550 mm)
• Nut thickness: 2 3/8" (60 mm)
• Bearing surface: 13 19/32" (345 mm)

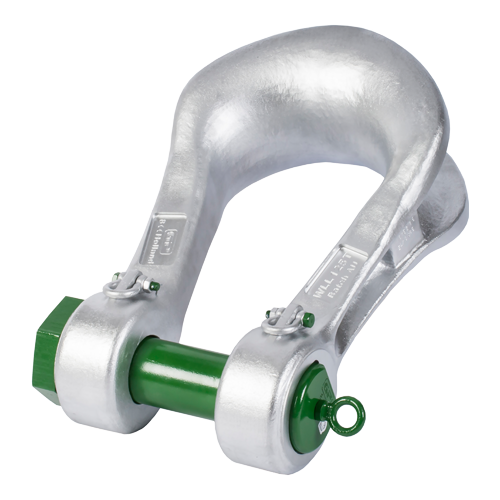

Constructed from alloy steel (Grade 8, quenched and tempered), this shackle operates in temperatures from -40°C to 200°C. The bow is painted silver, while the pin is green for easy identification.

The Power Sling® design allows for up to 20% savings on synthetic and wire rope costs. It undergoes rigorous testing, including more than 40,000 fatigue cycles and proof load testing to twice the working load limit.

Multiple handling points on the body and pin facilitate safe and straightforward positioning. This shackle serves various industries, including offshore oil and gas, marine construction, and heavy machinery transport.

Certifications available upon request include:

• ABS Product Design Assessment (PDA)
• DNV Type Approval
• Lloyd's Register Type Approval

For pricing and availability of the Green Pin® Power Sling Shackle Safety Bolt N/A (SLPGP0300), click the 'Add to Quote' button to submit an inquiry.
