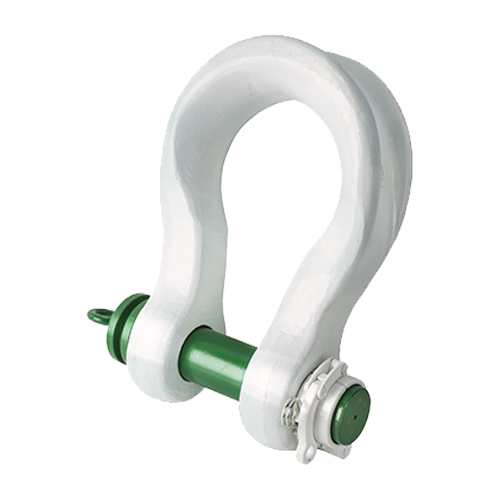

GREEN PIN LOCKING CLAMP ROV SLING SHACKLE 1-9/16" (SLGPF0030ROVRLLC)

The Green Pin® Locking Clamp ROV Sling Shackle (SLGPF0030ROVRLLC) is engineered for subsea operations with remotely operated vehicles. This grade 8 shackle, distributed by Vancouver Rigging Supply Ltd., is designed for underwater use in Canadian offshore and marine industries.

Key specifications include:

• Working Load Limit: 30 t
• Net Weight: 27.5 lbs (12.47 kg)
• Body Diameter: 1 9/16" (39.69 mm)
• Pin Diameter: 1 21/32" (42.07 mm)
• Eye Diameter: 3 17/32" (89.69 mm)

The shackle's increased bow radius minimizes wear on slings, allowing for the use of lighter ropes without compromising load capacity. This design aspect can reduce operational costs for Canadian companies in offshore oil and gas, underwater construction, and marine salvage operations.

Additional measurements:

• Inside Width: 2 23/32" (69.06 mm)
• Inside Length: 6 1/2" (165.1 mm)
• Bow Width: 4 31/32" (126.21 mm)
• Total Length: 10 31/32" (278.59 mm)
• Bolt Length: 8 9/32" (210.41 mm)
• Width: 7 7/8" (200.03 mm)
• Locking Clamp Width: 1 9/16" (39.69 mm)
• Bearing Surface: 3 1/8" (79.38 mm)

The white coating on the shackle enhances underwater visibility, facilitating ROV operations in low-light conditions common in Canadian waters. The locking system is engineered for ROV manipulation, ensuring secure load retention until intentional release.

This shackle adheres to industry standards and regulations for subsea lifting equipment. It is used in offshore wind farm installations, underwater pipeline construction, and marine research expeditions conducted off Canadian coasts.

For pricing information on the Green Pin® Locking Clamp ROV Sling Shackle (SLGPF0030ROVRLLC), click the 'Add to Quote' button to submit an inquiry to Vancouver Rigging Supply Ltd.
