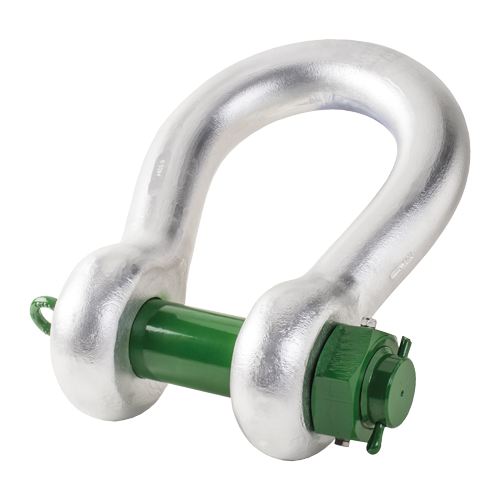

GREEN PIN HEAVY DUTY BOW SHACKLE WJTH SAFETY BOLT AND FIXED NUT 3-3/4" (HDGPHM0120FN)

The Green Pin® Heavy Duty Bow Shackle FN (HDGPHM0120FN) from Vancouver Rigging Supply Ltd. meets Canadian distribution requirements for substantial load-bearing applications. This bow shackle, with a working load limit of 120t, serves industries requiring robust rigging solutions.

Key measurements include:

• Bow diameter: 3 3/4" (95.25 mm)
• Pin diameter: 3 3/4" (95.25 mm)
• Inside width: 5 25/32" (146.84 mm)
• Inside length: 15 3/4" (400.05 mm)
• Overall length: 25 11/32" (643.89 mm)
• Net weight: 243 LBS (110.22 kg)

The shackle's triple safety design incorporates a split pin, safety bolt, and fixed nut. The fixed nut, drilled through both the shackle nut and pin, attaches firmly to the pin head using bolts and Nord-Lock® washers. This configuration addresses dynamic loads and extreme vibrations encountered in construction, marine, and industrial environments.

Engineered for one-leg and multi-leg systems, this Green Pin® shackle adheres to DNV GL certifications. Its galvanized finish contributes to longevity in corrosive conditions often found in offshore and maritime operations.

Additional technical specifications:

• Eye diameter: 8 1/32" (204 mm)
• Eye width: 3 3/4" (95.25 mm)
• Bow width: 9 3/8" (238.13 mm)
• Bolt length: 17 27/32" (453.23 mm)
• Nut thickness: 1 31/32" (50.01 mm)
• Securing bolt thread: M12"
• Securing bolt length: 5 29/32" (150.02 mm)
• Torque: 75 nm

For industries such as oil and gas, renewable energy, and heavy manufacturing, this shackle addresses requirements for load security and operational continuity. To obtain pricing information for the Green Pin® Heavy Duty Bow Shackle FN (HDGPHM0120FN), click the 'Add to Quote' button on this page.
