PRODUCT CODE: P-5362F | PART NUMBER: POGHBB38ROVSFF

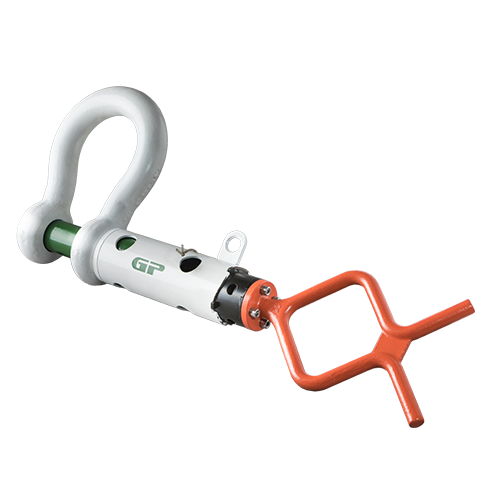

GREEN PIN GUIDED PIN ROV SHACKLE WITH F HANDLE 1-1/2" (POGHBB38ROVSFF)
The Green Pin® Guided Pin ROV Shackle F is a shackle with a guiding tube with a Fishtail-Handle developed for release and retrieve operations with a remotely operated vehicle (ROV). The guiding tube ensures a 100% straight alignment of the shackle pin towards the shackle eyes which makes remote assembly and disassembly much easier. A lifting eye on the guiding tube also helps the ROV operator to balance the shackle and guarantees that the pin cannot fall out of the tube. The Green Pin® Guided Pin ROV Shackle F also improves safety through its innovative locking system which prevents the shackle pin from accidentally turning counterclockwise and coming loose. The shackle is also available with a D-handle. The Green Pin® Guided Pin ROV Shackle F is delivered completely assembled and is available in a range with a working load limit from 12 up to 55 ton. Click here to know more about the product.
Size (inches): 1-1/2"
Weight (lbs): 28.7
Working Load Limit (t): 17.0
