GREEN PIN GUIDED PIN ROV SHACKLE WITH D HANDLE 1-1/4" (POGHBB32ROVSFD)

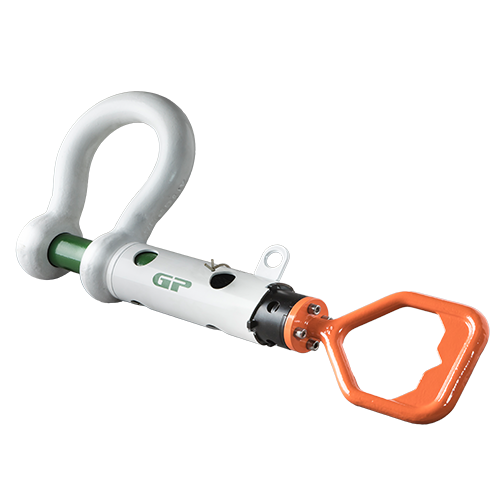

The Green Pin® Guided Pin ROV Shackle D (POGHBB32ROVSFD) is a specialized sub-sea rigging component distributed by Vancouver Rigging Supply Ltd. for Canadian industries. This shackle features a guiding tube with a D-Handle, engineered for remote operations using Remotely Operated Vehicles (ROVs).

Key specifications include:

• Working Load Limit: 12 t
• Net Weight: 22.1 lbs (10.02 kg)
• Bow Diameter: 1 1/4" (31.75 mm)
• Pin Diameter: 1 3/8" (34.93 mm)
• Eye Diameter: 2 27/32" (72.23 mm)
• Inside Width: 2" (50.8 mm)
• Inside Length: 4 17/32" (115.09 mm)
• Closed Position Length: 25 21/32" (651.51 mm)
• Open Position Length: 22 13/32" (568.71 mm)
• Guide Tube Diameter: 3 9/32" (83.34 mm)

The guiding tube ensures direct alignment of the shackle pin with the eyes, facilitating remote assembly and disassembly. A lifting eye on the tube assists ROV operators in balancing the shackle and prevents pin displacement.

This shackle incorporates a locking mechanism that inhibits counterclockwise rotation of the pin, reducing the risk of accidental loosening. The white coating improves underwater visibility for ROV operations.

Applications for the Green Pin® Guided Pin ROV Shackle D include:

• Offshore oil and gas platforms
• Underwater construction projects
• Marine salvage operations
• Oceanographic research expeditions

The product adheres to relevant industry standards and certifications for sub-sea rigging equipment.

For pricing information on the Green Pin® Guided Pin ROV Shackle D (POGHBB32ROVSFD), select the 'Add to Quote' button to submit a request.
