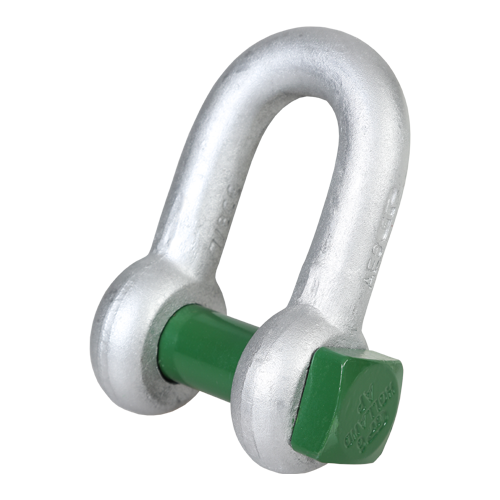

GREEN PIN FISHING DEE SHACKLE SQUARE HEAD SCREW PIN 5/8” (GPGDVK16)

The Green Pin® Fishing Dee Shackle Square Head Screw Pin 5/8" (GPGDVK16) is a specialized rigging component designed for maritime applications. This bow shackle, part number GPGDVK16, features a square-headed screw pin compatible with common fishing vessel tools.

Key specifications include:

• Working Load Limit: 3.25 t
• Bow Diameter: 5/8" (16 mm)
• Pin Diameter: 3/4" (19 mm)
• Eye Diameter: 1 9/16" (40 mm)
• Inside Width: 1 1/16" (27 mm)
• Inside Length: 2" (51 mm)
• Overall Length: 3 13/16" (97 mm)
• Bolt Length: 2 25/32" (71 mm)
• Bolt Head Width: 1 1/16" (27 mm)
• Net Weight: 1.28 lbs (0.58 kg)

Manufactured from high tensile steel (Grade 6, quenched and tempered), this shackle undergoes hot-dip galvanization for corrosion resistance. The eye incorporates a chamber to conceal the screw thread, reducing rope wear during use.

The Green Pin® Fishing Dee Shackle adheres to EN 13889 standards and meets US Federal Specification RR-C-271, Grade A performance requirements. It is engineered for single-leg lifting systems with a minimum breaking load of 6 times the working load limit.

Applications include:

• Commercial fishing operations
• Marine construction projects
• Offshore oil and gas installations
• Shipbuilding and repair facilities

For pricing and availability in Canada, click the 'Add to Quote' button to submit an inquiry.
