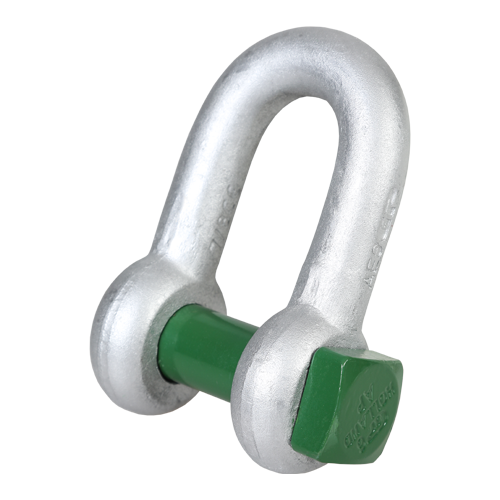

GREEN PIN FISHING DEE SHACKLE SQUARE HEAD SCREW PIN 1/2" (GPGDVK13)

The Green Pin® Fishing Dee Shackle Square Head Screw Pin 1/2" (GPGDVK13) is a bow shackle designed for marine applications, distributed by Vancouver Rigging Supply Ltd. across Canada. This shackle, with product code G-4154, features a square-headed screw pin compatible with standard fishing vessel tools.

Key specifications include:

• Working Load Limit: 2 t
• Bow Diameter: 1/2" (12.7 mm)
• Pin Diameter: 5/8" (15.9 mm)
• Eye Diameter: 1 11/32" (34.1 mm)
• Inside Width: 7/8" (22.2 mm)
• Inside Length: 1 11/16" (42.9 mm)
• Total Length: 3 7/32" (81.8 mm)
• Bolt Length: 2 1/4" (57.2 mm)
• Bolt Head Width: 7/8" (22.2 mm)
• Net Weight: 0.7 lbs (0.32 kg)

Constructed from high tensile steel (Grade 6, quenched and tempered), this shackle undergoes hot-dip galvanization for corrosion resistance. The eye features a chamber that conceals the screw thread, reducing rope wear during use.

This Green Pin® product adheres to EN 13889 standards and meets US Federal Specification RR-C-271, Grade A performance requirements. Its design supports one-leg lifting systems, making it applicable for fishing operations, marine construction, and offshore industries.

The shackle's safety factor ensures a minimum breaking load of 6 times the working load limit, providing a balance of strength and usability for maritime environments.

For procurement inquiries, use the 'Add to Quote' button to initiate the quotation process with Vancouver Rigging Supply Ltd.
