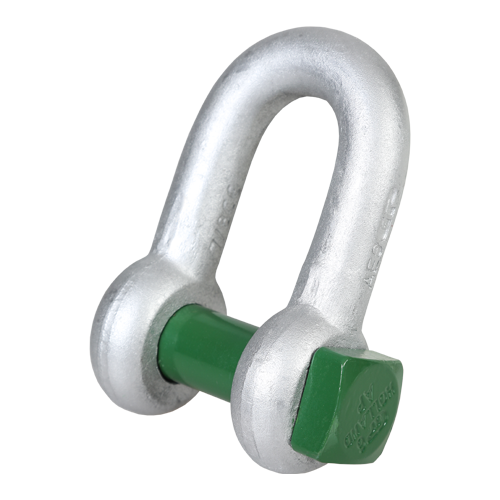

GREEN PIN FISHING DEE SHACKLE SQUARE HEAD SCREW PIN 1-1/2” (GPGDVK38)

The Green Pin® Fishing Dee Shackle Square Head Screw Pin 1-1/2" (GPGDVK38) is a specialized rigging component engineered for marine applications. This bow shackle, part number G-4154, features a square-headed screw pin compatible with standard tools used on fishing vessels.

Key specifications include:

• Working Load Limit: 17 t
• Bow Diameter: 1 1/2" (38 mm)
• Pin Diameter: 1 5/8" (41 mm)
• Eye Diameter: 3 15/32" (88 mm)
• Inside Width: 2 3/8" (60 mm)
• Inside Length: 5" (127 mm)
• Overall Length: 9 1/16" (230 mm)
• Bolt Length: 6 15/32" (164 mm)
• Bolt Head Width: 2 3/8" (60 mm)
• Net Weight: 15 lbs (6.8 kg)

This Green Pin® shackle is constructed from high tensile steel (Grade 6, quenched and tempered) for both the bow and pin. The hot-dipped galvanized finish provides corrosion resistance in marine environments. A chamfered eye design reduces rope wear and conceals the screw thread.

The GPGDVK38 adheres to EN 13889 standards and meets US Federal Specification RR-C-271, Grade A performance requirements. Its minimum breaking load is six times the working load limit, ensuring a safety factor of 6:1.

This shackle is designed for single-leg lifting systems in fishing and marine operations. Its square-headed pin facilitates tool engagement on fishing vessels, where space constraints and wet conditions can complicate equipment handling.

Canadian fishing fleets, offshore oil and gas operations, and marine construction projects can benefit from the durability and functionality of this Green Pin® Fishing Dee Shackle. To inquire about availability and technical specifications for your specific application, click the 'Add to Quote' button on this page.
