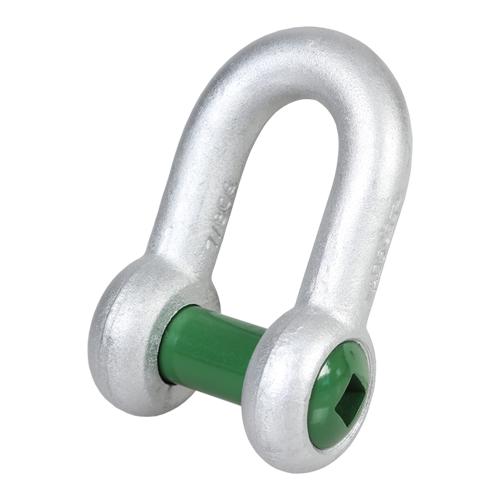

GREEN PIN FISHING DEE SHACKLE FLUSH PIN 3/4” (GPGDVV19)

The Green Pin® Fishing Dee Shackle FP (GPGDVV19) from Vancouver Rigging Supply Ltd. addresses the needs of Canadian fishing and marine industries. This dee shackle features a square sunken hole screw pin design, eliminating protrusions that could damage or snag fishing nets.

Key specifications include:

• Net weight: 2.15 lbs (0.98 kg)
• Bow diameter: 3/4" (19 mm)
• Pin diameter: 7/8" (22 mm)
• Eye diameter: 1 13/16" (46 mm)
• Eye width: 3/4" (19 mm)
• Inside width: 1 7/32" (31 mm)
• Inside length: 2 5/16" (59 mm)
• Total length: 4 13/32" (112 mm)
• Bolt length: 2 29/32" (74 mm)
• Hole size: 7/16" (11 mm)

The shackle's eye chamber conceals the screw thread, reducing rope wear. Galvanization of the bow enhances corrosion resistance in marine environments. This product is designed for one-leg lifting systems and requires assembly using the Green Pin® Sunken Hole Key.

Industries benefiting from this shackle include:

• Commercial fishing operations
• Offshore oil and gas platforms
• Marine construction projects
• Shipyards and vessel maintenance facilities

The Green Pin® Fishing Dee Shackle FP meets industry standards for safety and performance. To obtain pricing information and place an order, click the 'Add to Quote' button on this page.
