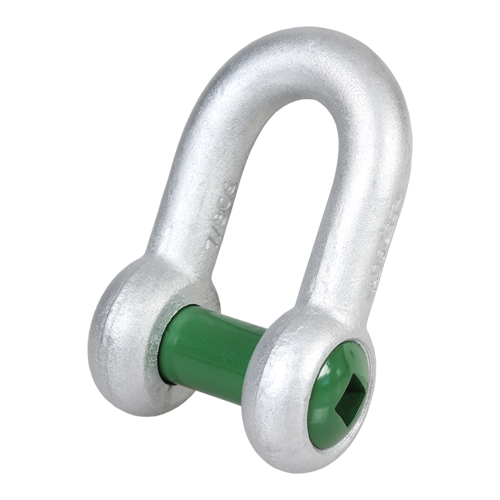

GREEN PIN FISHING DEE SHACKLE FLUSH PIN 1-1/4” (GPGDVV32)

The Green Pin® Fishing Dee Shackle FP (GPGDVV32) from Vancouver Rigging Supply Ltd. meets the needs of Canadian industries requiring specialized rigging components. This dee shackle features a square sunken hole screw pin design, eliminating protruding parts that could snag or damage fishing nets.

Key measurements include:

• Net weight: 7.69 lbs (3.49 kg)
• Bow diameter: 1 1/4" (31.75 mm)
• Pin diameter: 1 3/8" (34.93 mm)
• Eye diameter: 2 7/8" (73.03 mm)
• Inside width: 2" (50.8 mm)
• Inside length: 3 11/16" (93.66 mm)
• Total length: 7 3/32" (180.18 mm)
• Bolt length: 4 13/16" (122.24 mm)
• Hole size: 21/32" (16.67 mm)

The shackle eye's chamber conceals the screw thread, reducing rope wear. Galvanization of the bow shackle contributes to its durability in marine environments. This component is designed for one-leg lifting systems and can be assembled using the Green Pin® Sunken Hole Key.

Industries that may find this product useful include:

• Commercial fishing
• Offshore oil and gas
• Marine construction
• Shipbuilding

The Green Pin® Fishing Dee Shackle FP adheres to relevant industry standards and certifications, ensuring compatibility with Canadian safety regulations.

To obtain pricing information for the GPGDVV32, click the 'Add to Quote' button on this page to initiate a quote request.
