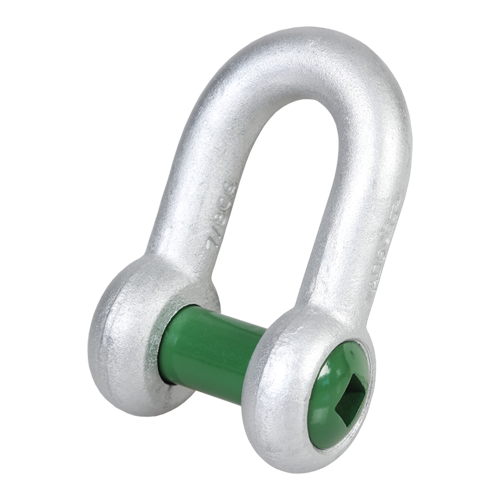

GREEN PIN FISHING DEE SHACKLE FLUSH PIN 1-1/2" (GPGDVV38)

The Green Pin® Fishing Dee Shackle FP (GPGDVV38) is a specialized rigging component distributed by Vancouver Rigging Supply Ltd. for Canadian industrial applications. This dee shackle features a square sunken hole screw pin design, eliminating protruding parts to prevent damage to fishing nets and reduce snagging hazards.

Key specifications of this shackle include:

• Net weight: 13.7 lbs (6.21 kg)
• Bow diameter: 1 1/2" (38 mm)
• Pin diameter: 1 5/8" (41 mm)
• Eye diameter: 3 15/32" (88 mm)
• Eye width: 1 1/2" (38 mm)
• Inside width: 2 3/8" (60 mm)
• Inside length: 5" (127 mm)
• Total length: 9 1/16" (230 mm)
• Bolt length: 5 23/32" (145 mm)
• Hole size: 21/32" (17 mm)

The GPGDVV38 is engineered for one-leg lifting systems and can be assembled using the Green Pin® Sunken Hole Key. Its galvanized finish provides corrosion resistance for marine environments. The chamber in the shackle eye conceals the screw thread, minimizing rope wear during operations.

This shackle finds applications in:

• Commercial fishing operations
• Offshore oil and gas platforms
• Marine construction projects
• Shipbuilding and repair facilities

The Green Pin® Fishing Dee Shackle FP meets industry standards for safety and performance. To obtain pricing information and place an order, click the 'Add to Quote' button on this page.
