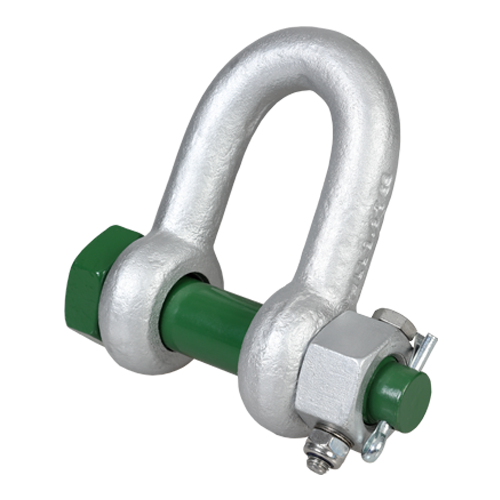

GREEN PIN DEE SHACKLE FIXED NUT 5/8” (GPGDMB16FN)

The Green Pin® Dee Shackle Fixed Nut 5/8" (GPGDMB16FN) is a high-tensile steel rigging component distributed by Vancouver Rigging Supply Ltd. for Canadian industrial applications. This shackle, with part number GPGDMB16FN, features a safety bolt and fixed nut design, making it appropriate for loads subject to dynamic forces or vibrations.

Key Specifications:

• Working Load Limit: 3-1/4 t
• Bow Diameter: 5/8" (15.88 mm)
• Pin Diameter: 3/4" (19.05 mm)
• Eye Diameter: 1 9/16" (39.69 mm)
• Inside Width: 1 1/16" (26.99 mm)
• Inside Length: 2" (50.8 mm)
• Overall Length: 3 13/16" (96.84 mm)
• Bolt Length: 3 27/32" (97.63 mm)
• Nut Thickness: 21/32" (16.67 mm)
• Net Weight: 1.48 lbs (0.67 kg)

Technical Details:

• Securing Bolt Thread: M6
• Securing Bolt Length: 1 9/16" (39.69 mm)
• Torque: 8.4 nm
• Temperature Range: -40°C to +200°C
• Safety Factor: Minimum Breaking Load equals 6 times Working Load Limit

This Green Pin® Dee Shackle is manufactured from grade 6 high tensile steel, quenched and tempered for durability. The hot-dipped galvanized finish provides corrosion resistance for maritime and industrial environments.

Certifications and Standards:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVB Class 3, Grade A (performance requirements)
• DNV GL certification

Applications:

• Offshore oil and gas operations
• Marine construction and salvage
• Heavy machinery transport
• Mining operations
• Crane and hoisting applications

The fixed nut design, secured with bolts and Nord-Lock® washers, provides additional safety for lifting operations. This shackle is engineered for use in applications where load security is paramount.

For pricing and availability of the Green Pin® Dee Shackle Fixed Nut 5/8" (GPGDMB16FN), click the 'Add to Quote' button to request a quote from Vancouver Rigging Supply Ltd.
