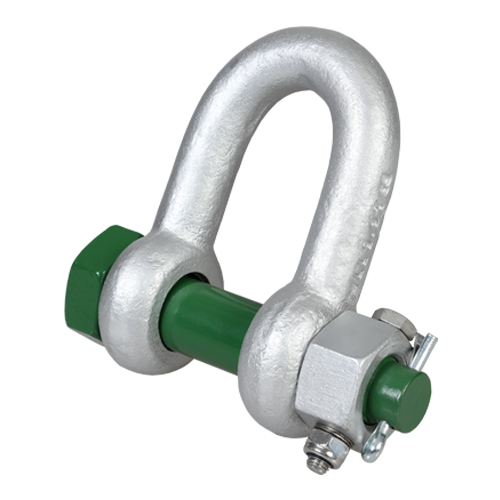

GREEN PIN DEE SHACKLE FIXED NUT 1-3/8" (GPGDMB35FN)

The Green Pin® Dee Shackle Fixed Nut 1-3/8" (GPGDMB35FN) is a high-performance rigging component designed for dynamic loads and environments with extreme vibrations. This shackle, part number GPGDMB35FN, features a triple safety mechanism comprising a split pin, safety bolt, and fixed nut, making it a go-to choice for Canadian industries requiring robust lifting solutions.

Key Specifications:

• Working Load Limit: 13-1/2 t
• Bow Diameter: 1-3/8" (35 mm)
• Pin Diameter: 1-1/2" (38 mm)
• Eye Diameter: 3-1/8" (79 mm)
• Inside Width: 2-1/4" (57 mm)
• Inside Length: 4-17/32" (115 mm)
• Total Length: 8-7/32" (209 mm)
• Net Weight: 13.5 lbs (6.1 kg)

Construction and Safety Features:

• Material: High tensile steel, Grade 6, quenched and tempered
• Safety Factor: Minimum Breaking Load (MBL) equals 6 times Working Load Limit (WLL)
• Finish: Hot dipped galvanized for corrosion resistance
• Temperature Range: -40°C to +200°C
• Fixed Nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers

Compliance and Certifications:

• EN 13889
• ASME B30.26
• US Federal Specification RR-C-271 Type IVB Class 3, Grade A (performance requirements)
• DNV GL certification

Applications:

• Offshore oil and gas operations
• Marine and shipyard rigging
• Construction and infrastructure projects
• Mining and heavy industry
• Wind energy installation and maintenance

This Green Pin® Dee Shackle is manufactured to meet the demands of Canadian industries where safety and performance are paramount. Its fixed nut design provides additional security in applications with constant movement or vibration.

For detailed technical specifications or to request a quote for the Green Pin® Dee Shackle Fixed Nut 1-3/8" (GPGDMB35FN), click the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. stands ready to support your rigging needs across Canada.
