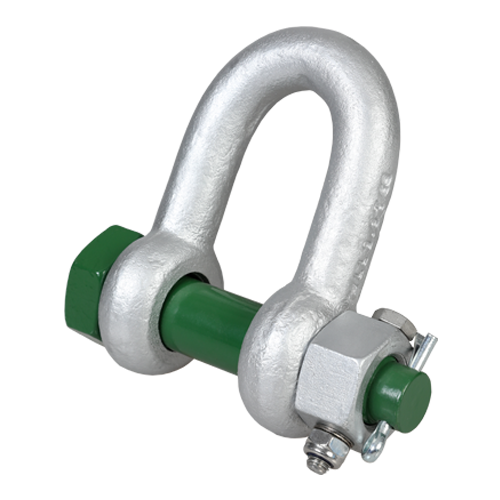

GREEN PIN DEE SHACKLE FIXED NUT 1-1/4” (GPGDMB32FN)

The Green Pin® Dee Shackle Fixed Nut 1-1/4" (GPGDMB32FN) is an engineered solution for dynamic loads and environments with extreme vibrations. This shackle, part of Vancouver Rigging Supply Ltd.'s Canadian distribution, features a triple safety mechanism: split pin, safety bolt, and fixed nut.

Key Specifications:

• Working Load Limit: 12 t
• Material: High tensile steel, Grade 6, quenched and tempered
• Finish: Hot dipped galvanized
• Temperature Range: -40°C to +200°C
• Safety Factor: Minimum Breaking Load equals 6 x Working Load Limit

Dimensions:

• Bow Diameter: 1 1/4" (32 mm)
• Pin Diameter: 1 3/8" (35 mm)
• Eye Diameter: 2 7/8" (73 mm)
• Eye Width: 1 1/4" (32 mm)
• Inside Width: 2" (51 mm)
• Inside Length: 3 11/16" (94 mm)
• Overall Length: 7 3/32" (180 mm)
• Bolt Length: 7 1/4" (184 mm)
• Nut Thickness: 1 3/16" (30 mm)
• Net Weight: 9.95 lbs (4.5 kg)

Additional Features:

• Securing Bolt Thread: M10
• Securing Bolt Length: 2 9/16" (65 mm)
• Torque: 39 nm

This Green Pin® Dee Shackle adheres to EN 13889, ASME B30.26 standards and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A. It is DNV GL certified, making it appropriate for offshore, marine, and industrial applications.

Industries benefiting from this shackle include construction, offshore oil and gas, wind energy, and heavy machinery manufacturing. Its fixed nut design, secured with bolts and Nord-Lock® washers, provides stability in applications involving recurring loads and vibrations.

To acquire this Green Pin® Dee Shackle for your Canadian operations, click the 'Add to Quote' button on this page to request pricing information.
