GREEN PIN DEE SHACKLE BN 1-1/4” (GPGDMB32)

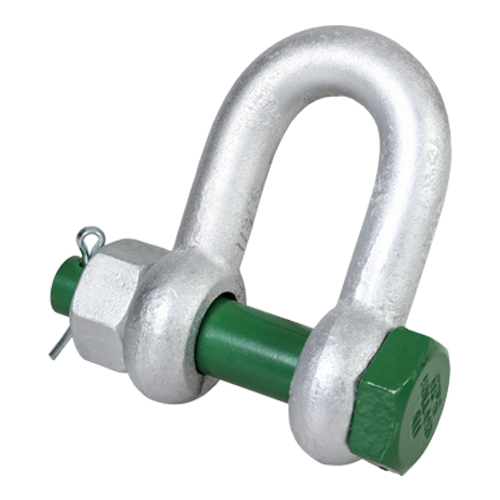

The Green Pin® Dee Shackle BN 1-1/4" (GPGDMB32) is a high-tensile steel shackle designed for one-leg lifting systems. This Canadian-distributed rigging component, with part number GPGDMB32, offers a working load limit of 12 t and adheres to EN 13889 and ASME B30.26 standards.

Key Features:

• Material: Bow and pin made of grade 6 high-tensile steel, quenched and tempered
• Safety Factor: Minimum breaking load equals 6 times the working load limit
• Finish: Hot-dipped galvanized for corrosion resistance
• Temperature Range: -40°C to +200°C
• Double Safety Mechanism: Split pin and safety bolt prevent accidental unscrewing

Dimensions:

• Bow Diameter: 1 1/4" (32 mm)
• Pin Diameter: 1 3/8" (35 mm)
• Eye Diameter: 2 7/8" (73 mm)
• Eye Width: 1 1/4" (32 mm)
• Inside Width: 2" (51 mm)
• Inside Length: 3 11/16" (94 mm)
• Total Length: 7 3/32" (180 mm)
• Bolt Length: 7 1/4" (184 mm)
• Nut Thickness: 1 3/16" (30 mm)
• Net Weight: 9.95 lbs (4.51 kg)

Applications:

• Offshore Operations: Oil rigs, marine construction
• Construction: Building sites, crane operations
• Industrial Use: Manufacturing plants, warehouses
• Transportation: Cargo securing, heavy equipment movement

Certifications:

• DNV GL Approved
• Meets US Federal Specification RR-C-271 Type IVB Class 3, Grade A performance requirements

This Green Pin® Dee Shackle BN is engineered for operations requiring reliable and durable rigging equipment. To obtain pricing information and place an order, click the 'Add to Quote' button on this page.
