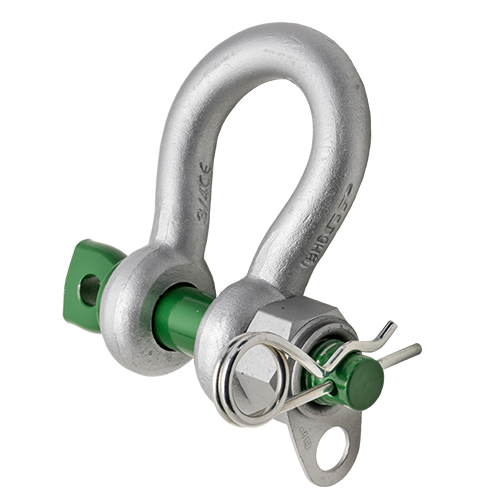

GREEN PIN CATCH SHACKLE WITH SAFETY BOLT 7/8” (GPGHMB22H)

The Green Pin® Catch Shackle BN (GPGHMB22H) from Vancouver Rigging Supply Ltd. addresses a significant safety concern in the lifting industry. This product prevents accidental dropping of shackle components, reducing potential hazards in industrial operations across Canada.

With a working load limit of 6.5 t, this shackle is engineered for heavy-duty applications. Its dimensions include:

• Bow diameter: 7/8" (22.2 mm)
• Pin diameter: 1" (25.4 mm)
• Eye diameter: 2 1/16" (52.4 mm)
• Inside width: 1 13/32" (35.7 mm)
• Inside length: 3 9/32" (83.3 mm)
• Overall length: 5 21/32" (143.7 mm)
• Bolt length: 6 5/16" (160.3 mm)
• Net weight: 4.23 lbs (1.92 kg)

This Green Pin® Catch Shackle BN features attachment points on each component for secure tethering. The independently rotating disc on the nut allows for unobstructed lanyard movement during use. A double safety mechanism, comprising a split pin and safety bolt, prevents unintended pin unscrewing.

Galvanization treatment ensures durability in various environmental conditions. The shackle is applicable for both single-leg and multi-leg rigging systems, making it useful in construction, marine, and industrial sectors throughout Canada.

Conforming to DNV standards, this shackle meets rigorous safety requirements. Its design aligns with DROPS organization guidelines for dropped object prevention in industrial settings.

For procurement inquiries, select the 'Add to Quote' button to initiate a quote request for the Green Pin® Catch Shackle BN (GPGHMB22H).
