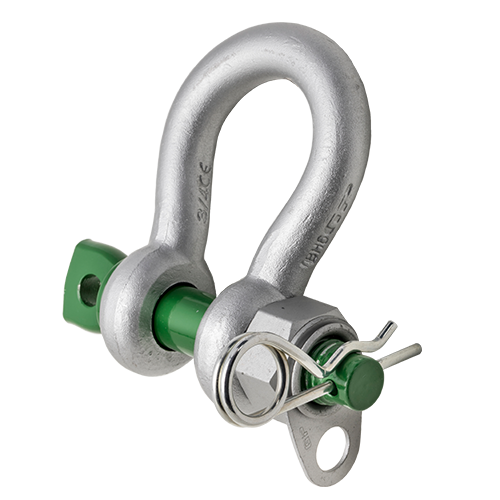

GREEN PIN CATCH SHACKLE WITH SAFETY BOLT 1-1/8” (GPGHMB28H)

The Green Pin® Catch Shackle BN (GPGHMB28H) from Vancouver Rigging Supply Ltd. addresses dropped object hazards in industrial lifting operations. This 9.5 t (10.5 short ton) working load limit shackle features attachment points on each component for secure tethering, reducing the risk of accidental drops.

Key specifications:

• Bow diameter: 1 1/8" (28.58 mm)
• Pin diameter: 1 1/4" (31.75 mm)
• Eye diameter: 2 19/32" (65.88 mm)
• Inside width: 1 27/32" (46.44 mm)
• Inside length: 4 1/4" (107.95 mm)
• Overall length: 7 9/32" (185.01 mm)
• Net weight: 8.62 lbs (3.91 kg)

The Green Pin® Catch Shackle BN incorporates a double safety mechanism with a split pin and safety bolt to prevent unintended pin loosening. Its galvanized finish promotes longevity in challenging environments.

This shackle is applicable in sectors such as offshore oil and gas, wind energy, and heavy construction. It functions in both single-leg and multi-leg rigging configurations, supporting loads up to 9.5 t.

The product meets DNV certification standards, confirming its performance for industrial lifting applications. Developed in collaboration with DROPS, this shackle aligns with industry-driven safety initiatives.

For Canadian distribution inquiries, click the "Add to Quote" button to request pricing information on the Green Pin® Catch Shackle BN (GPGHMB28H).
