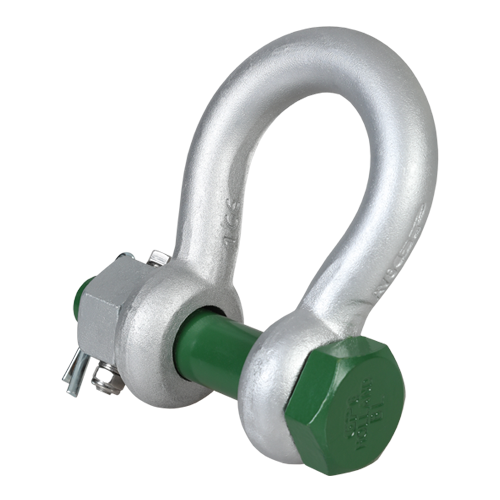

GREEN PIN BOW SHACKLE WITH SAFETY BOLT AND FIXED NUT 5/8” (GPGHMB16FN)

The Green Pin® Bow Shackle with Safety Bolt and Fixed Nut 5/8" (GPGHMB16FN) is a high-tensile steel rigging component designed for dynamic load applications and environments with extreme vibrations. This 5/8" shackle, part number GPGHMB16FN, offers triple safety features including a split pin, safety bolt, and fixed nut.

Key Specifications:

• Working Load Limit: 3.25 t
• Bow Diameter: 5/8" (15.9 mm)
• Pin Diameter: 3/4" (19.1 mm)
• Eye Diameter: 1 9/16" (39.7 mm)
• Inside Width: 1 1/16" (27 mm)
• Inside Length: 2 17/32" (64.3 mm)
• Overall Length: 4 11/32" (110.3 mm)
• Net Weight: 1.62 lbs (0.73 kg)

Engineering Features:

• Material: High tensile steel, Grade 6, quenched and tempered
• Safety Factor: Minimum Breaking Load equals 6 times Working Load Limit
• Finish: Hot dipped galvanized
• Temperature Range: -40°C to +200°C
• Securing Bolt Thread: M6
• Torque: 8.4 nm

Compliance and Standards:

• EN 13889
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (2 t and above)
• ASME B30.26 (2 t and above)
• DNV GL certified

Applications:

• Offshore oil and gas operations
• Marine and maritime industries
• Construction and infrastructure projects
• Heavy machinery and equipment handling
• Mining and quarrying operations

This Green Pin® Bow Shackle is engineered for use in both single-leg and multi-leg rigging systems. Its fixed nut design, secured with bolts and Nord-Lock® washers, provides additional stability in high-vibration environments.

For Canadian companies seeking this specialized rigging hardware, click the 'Add to Quote' button to request pricing and availability information.
