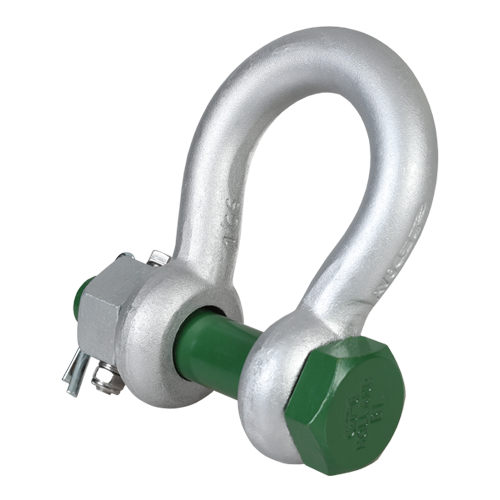

GREEN PIN BOW SHACKLE WITH SAFETY BOLT AND FIXED NUT 1” (GPGHMB25FN)

The Green Pin® Bow Shackle with Safety Bolt and Fixed Nut 1" (GPGHMB25FN) delivers triple safety features for dynamic loads and extreme vibration scenarios. This 1" shackle, distributed by Vancouver Rigging Supply Ltd., boasts a working load limit of 8.5 t, making it a consideration for heavy-duty applications across Canada.

Key Specifications:

• Our Part Number: GPGHMB25FN
• Product Code: G-4143
• Weight: 5.69 lbs (2.58 kg)
• Bow Diameter: 1" (25.4 mm)
• Pin Diameter: 1 1/8" (28.58 mm)
• Eye Diameter: 2 5/16" (58.74 mm)
• Inside Width: 1 11/16" (42.86 mm)
• Inside Length: 3 3/4" (95.25 mm)
• Overall Length: 6 15/32" (164.31 mm)
• Bolt Length: 5 29/32" (149.62 mm)
• Overall Width: 4 21/32" (118.27 mm)
• Nut Thickness: 31/32" (24.61 mm)
• Securing Bolt Thread: M8
• Securing Bolt Length: 2 5/32" (54.77 mm)
• Torque: 20 nm

Engineering Specifications:

• Material: High tensile steel, Grade 6, quenched and tempered
• Safety Factor: MBL equals 6 x WLL
• Finish: Hot dipped galvanized
• Temperature Range: -40°C to +200°C

Standards and Certifications:

• EN 13889
• US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A (2 t and up)
• ASME B30.26 (2 t and up)
• DNV GL certified

Applications:

• Maritime Operations: Offshore platforms, ship rigging
• Construction: Heavy equipment lifting, steel erection
• Mining: Equipment hoisting, material handling
• Energy Sector: Wind turbine assembly, oil rig operations

This Green Pin® Bow Shackle is engineered for use in both single-leg and multi-leg rigging systems. Its fixed nut, drilled through the shackle nut and pin, is secured to the pin head with bolts and Nord-Lock® washers, providing stability in high-vibration environments.

For Canadian companies seeking this Green Pin® Bow Shackle with Safety Bolt and Fixed Nut 1" (GPGHMB25FN), click the 'Add to Quote' button to request pricing information from Vancouver Rigging Supply Ltd.
