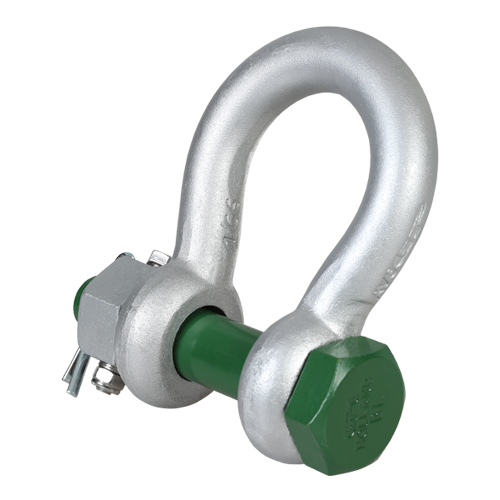

GREEN PIN BOW SHACKLE WITH SAFETY BOLT AND FIXED NUT 1/2” (GPGHMB13FN)

The Green Pin® Bow Shackle with Safety Bolt and Fixed Nut 1/2" (GPGHMB13FN) is a precision-engineered rigging component available for Canadian distribution through Vancouver Rigging Supply Ltd. This shackle, part number GPGHMB13FN, is designed for applications requiring a 2 t working load limit.

Key specifications include:

• Bow diameter: 1/2" (12.7 mm)
• Pin diameter: 5/8" (15.9 mm)
• Eye diameter: 1 11/32" (34.1 mm)
• Inside width: 7/8" (22.2 mm)
• Inside length: 2" (50.8 mm)
• Overall length: 3 17/32" (89.7 mm)
• Bolt length: 3 5/32" (80.2 mm)
• Overall width: 2 5/16" (58.7 mm)
• Net weight: 0.92 lbs (0.42 kg)

The Green Pin® Bow Shackle FN features a safety bolt with M6 thread and a 1 3/8" (34.9 mm) length. The fixed nut, measuring 1/2" (12.7 mm) in thickness, is secured to the pin head using bolts and Nord-Lock® washers. This configuration provides triple safety through the split pin, safety bolt, and fixed nut assembly.

Manufactured from high tensile steel (Grade 6, quenched and tempered), this shackle offers a safety factor where the minimum breaking load equals 6 times the working load limit. It is hot-dip galvanized and operates in temperatures ranging from -40°C to +200°C.

The Green Pin® Bow Shackle FN adheres to EN 13889 standards and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A. For capacities of 2 t and above, it complies with ASME B30.26.

This shackle is applicable in various industries, including:

• Construction: For lifting and securing heavy materials on job sites
• Marine operations: In offshore platforms and shipyards
• Manufacturing: For assembly line rigging and material handling
• Energy sector: In wind turbine installation and maintenance

The Green Pin® Bow Shackle FN is compatible with both single-leg and multi-leg rigging systems, making it a versatile component for various lifting configurations.

For detailed specifications and to request a quote for the Green Pin® Bow Shackle with Safety Bolt and Fixed Nut 1/2" (GPGHMB13FN), click the 'Add to Quote' button on this page.
