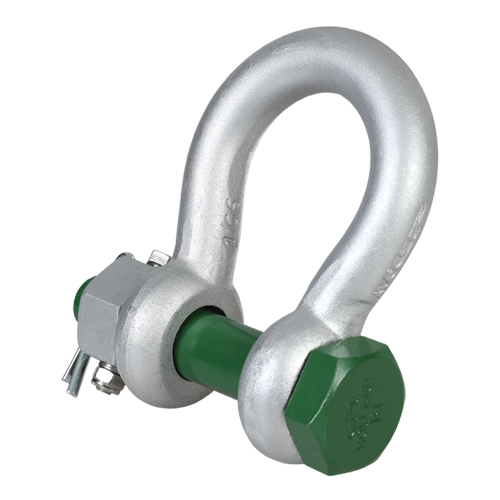

GREEN PIN BOW SHACKLE WITH SAFETY BOLT AND FIXED NUT 1-1/4” (GPGHMB32FN)

The Green Pin® Bow Shackle with Safety Bolt and Fixed Nut 1-1/4" (GPGHMB32FN) is a high-tensile steel rigging component distributed by Vancouver Rigging Supply Ltd. for Canadian industries. This G-4143 model features a working load limit of 12 t, making it suitable for heavy-duty applications.

Key Specifications:

• Bow diameter: 1 1/4" (32 mm)
• Pin diameter: 1 3/8" (35 mm)
• Eye diameter: 2 7/8" (73 mm)
• Inside width: 2" (51 mm)
• Inside length: 4 17/32" (115 mm)
• Overall length: 7 29/32" (201 mm)
• Overall width: 5 25/32" (147 mm)
• Net weight: 10.6 lbs (4.8 kg)

Safety Features:

• Triple safety mechanism: Split pin, safety bolt, and fixed nut
• Fixed nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
• Safety bolt thread: M10
• Safety bolt length: 2 9/16" (65 mm)
• Recommended torque: 39 nm

Technical Specifications:

• Material: High tensile steel, Grade 6, quenched and tempered
• Minimum breaking load: 6 times the working load limit
• Finish: Hot dipped galvanized
• Temperature range: -40°C to +200°C

Certifications:

• EN 13889
• US Federal Specification RR-C-271 Type IVA Class 3, Grade A (2 t and above)
• ASME B30.26 (2 t and above)
• DNV GL approval

Applications:

• Maritime operations: Offshore platforms, shipyards
• Construction: High-rise buildings, bridges
• Mining: Underground and surface operations
• Energy sector: Wind turbine installation, oil and gas rigs

This Green Pin® Bow Shackle is designed for use in both single-leg and multi-leg rigging systems. It performs in environments with dynamic loads and extreme vibrations. For detailed specifications and to request a quote, click the 'Add to Quote' button on this page.
