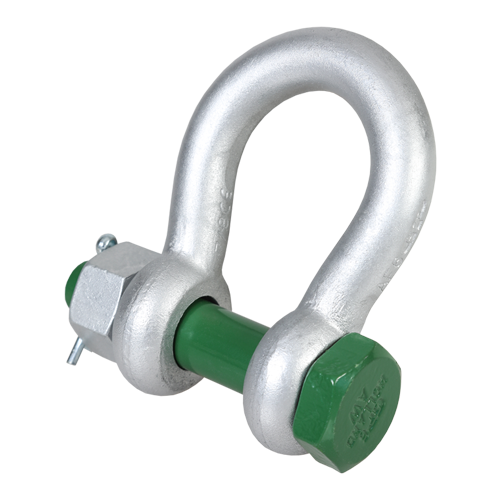

GREEN PIN BOW SHACKLE BN 1” (GPGHMB25)

Green Pin® Bow Shackle BN 1” (GPGHMB25) is engineered for reliability and safety. Key features include:

• Size: 1”
• Working Load Limit: 8-1/2t
• Product Code: G-4163
• Weight: 5.69 lbs
• Double safety (split pin and safety bolt)
• Galvanized for corrosion resistance
• Suitable for one-leg and multi-leg systems
• Material: Grade 6 high tensile steel, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Finish: Hot dipped galvanized
• Temp. range: -40°C up to +200°C
• Certifications: 2.1, 2.2, 3.1, MTCa, DNV 2.7-1a, DNV 2.7-1b, DNVGL-ST-0378, CE, ABS PDA, ABS MA
• Standards: EN 13889, US Fed. Spec. RR-C-271, ASME B30.26
• Dimensions: Bow diameter: 1”, Pin diameter: 1 1/8”, Eye diameter: 2 5/16”, Eye width: 31/32”, Inside width: 1 11/16”, Inside length: 3 3/4”, Bow width: 2 11/16”, Overall length: 6 15/32”, Bolt length: 5 29/32”, Overall width: 4 21/32”, Nut thickness: 31/32”
• Net weight: 5.69 lbs

Designed for Canadian maritime and offshore use, the Green Pin® Bow Shackle BN ensures operational safety and durability.
