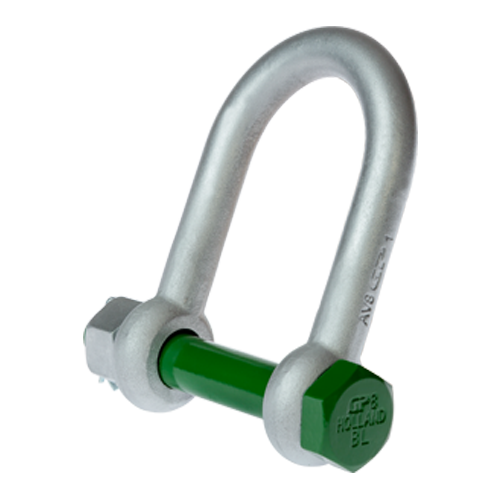

GREEN PIN BIGMOUTH DEE SHACKLE BN 1" (LDGDMB25)

The Green Pin® BigMouth® Dee Shackle BN (LDGDMB25) offers exceptional reach for challenging lifting scenarios. This shackle, distributed by Vancouver Rigging Supply Ltd. across Canada, boasts a working load limit of 8.6 t, making it a robust choice for heavy-duty applications.

Key measurements include:

• Bow diameter: 1" (25.4 mm)
• Pin diameter: 1 1/8" (28.6 mm)
• Eye diameter: 2 5/16" (58.7 mm)
• Inside width: 3 1/4" (82.6 mm)
• Inside length: 5 1/2" (139.7 mm)
• Total length: 8 3/16" (208 mm)
• Net weight: 6.90 lbs (3.13 kg)

The Green Pin® BigMouth® Dee Shackle BN excels in scenarios where standard shackles fall short, such as connecting to deeply set lifting points in steel sheet pile walls. Its extended inside dimensions allow for seamless integration with non-typical attachment points.

Safety features include:

• Galvanized finish for corrosion resistance
• Safety bolt for secure connections
• Cotter pin for additional security

This shackle adheres to industry standards and is certified for use in one-leg lifting systems. Its design caters to the needs of construction, marine, and industrial sectors where accessing difficult lifting points is a common challenge.

For Canadian companies seeking a solution for their specialized rigging needs, the Green Pin® BigMouth® Dee Shackle BN offers a combination of reach, strength, and safety. To inquire about this product for your operations, click the 'Add to Quote' button to request pricing information from Vancouver Rigging Supply Ltd.
