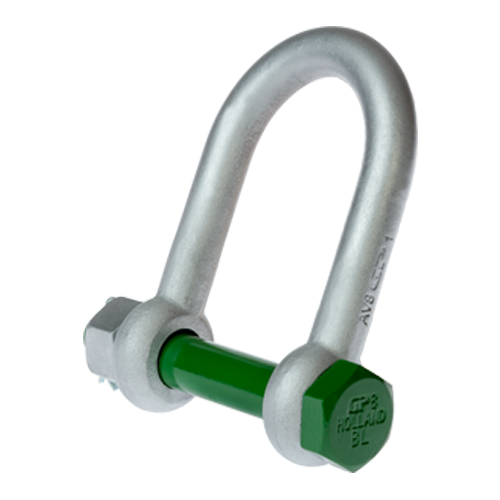

GREEN PIN BIGMOUTH DEE SHACKLE BN 1-1/2" (LDGDMB38)

The Green Pin® BigMouth® Dee Shackle BN (LDGDMB38) offers a solution for connecting to hard-to-reach lifting points. This shackle, available through Vancouver Rigging Supply Ltd., features an expanded inside width of 4 17/32" (115 mm) and length of 7" (178 mm), making it well-suited for applications in the steel sheet pile wall industry.

With a working load limit of 15.5 t, this shackle is engineered for heavy-duty lifting operations. Its dimensions include:

• Bow diameter: 1 1/2" (38 mm)
• Pin diameter: 1 5/8" (41 mm)
• Eye diameter: 3 15/32" (88 mm)
• Eye width: 1 1/2" (38 mm)
• Overall length: 11 1/16" (281 mm)
• Bolt length: 10 1/8" (257 mm)
• Nut thickness: 3/4" (19 mm)
• Net weight: 20.8 LBS (9.4 kg)

The Green Pin® BigMouth® Dee Shackle BN is galvanized to resist corrosion in various environments. It incorporates a safety bolt and cotter pin for added security during lifting operations. This shackle is designed for use in one-leg systems, catering to specific rigging requirements in construction, marine, and industrial sectors across Canada.

Conforming to industry standards, this shackle meets several certifications, ensuring compliance with safety regulations. For detailed information on its certifications and to request a quote, click the 'Add to Quote' button on this page.
