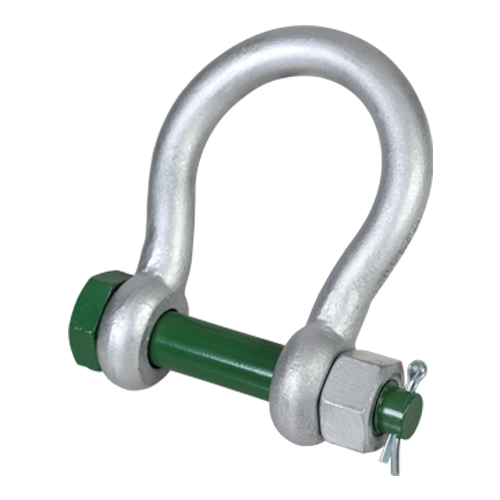

GREEN PIN BIGMOUTH BOW SHACKLE BN 1" (ASGHMB25FN)

The Green Pin® BigMouth® Bow Shackle BN 1" (ASGHMB25FN) is a grade 8 shackle engineered for dynamic loads and extreme vibrations. This Canadian-distributed rigging component features a wider mouth, accommodating larger connecting points. Its triple safety design includes a split pin, safety bolt, and fixed nut, adhering to stringent industry standards.

Key Specifications:

• Working Load Limit: 6.5 t
• Bow Diameter: 1" (25.4 mm)
• Pin Diameter: 1 1/8" (28.6 mm)
• Eye Diameter: 2 5/16" (58.7 mm)
• Inside Width: 2 15/16" (74.6 mm)
• Inside Length: 5 5/16" (134.9 mm)
• Overall Length: 8 1/32" (204 mm)
• Overall Width: 6 3/32" (154.8 mm)
• Net Weight: 6.92 lbs (3.14 kg)

Technical Features:

• Material: Alloy steel, Grade 8, quenched and tempered
• Finish: Hot-dipped galvanized for corrosion resistance
• Temperature Range: -20°C to +200°C
• Safety Factor: Minimum Breaking Load equals 6 times Working Load Limit
• Securing Bolt: M8 thread, 2 5/32" (54.8 mm) length
• Torque Specification: 22 nm

Applications:

• Industries: Marine, offshore, construction, heavy lifting
• Systems: Compatible with one-leg and multi-leg rigging configurations
• Environments: Performs in high-vibration and dynamic load conditions

The Green Pin® BigMouth® Bow Shackle BN 1" is manufactured to meet multiple international standards and certifications, ensuring compliance across various industrial applications. For detailed information on this rigging component's capabilities and to request a quote, click the 'Add to Quote' button on this page.
