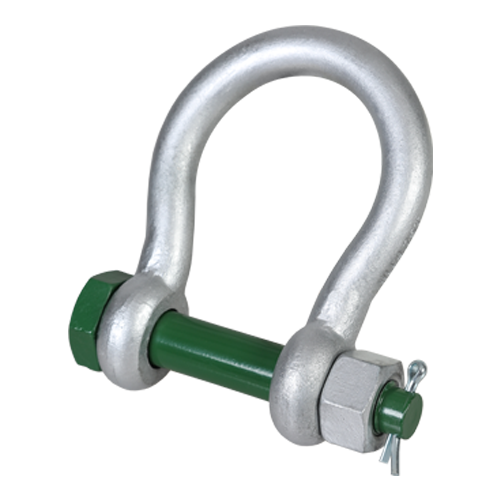

GREEN PIN BIGMOUTH BOW SHACKLE BN 1-3/4" (ASGHMB45FN)

The Green Pin® BigMouth® Bow Shackle BN 1-3/4" (ASGHMB45FN) is a grade 8 shackle engineered for dynamic loads and extreme vibrations. This Canadian-distributed rigging component features a wider mouth, accommodating larger connecting points. Its triple safety design includes a split pin, safety bolt, and fixed nut, adhering to stringent safety standards.

Key Specifications:

• Working Load Limit: 25 t
• Bow Diameter: 1 3/4" (44.45 mm)
• Pin Diameter: 2" (50.8 mm)
• Eye Diameter: 4 1/16" (103.19 mm)
• Inside Width: 5" (127 mm)
• Inside Length: 9 3/4" (247.65 mm)
• Overall Length: 14 9/16" (369.88 mm)
• Overall Width: 10 7/16" (265.11 mm)
• Net Weight: 36.9 lbs (16.74 kg)

Technical Details:

• Material: Alloy steel, Grade 8, quenched and tempered
• Finish: Hot-dipped galvanized
• Temperature Range: -20°C to +200°C
• Safety Factor: MBL equals 6 x WLL
• Securing Bolt Thread: M8
• Securing Bolt Length: 3 17/32" (89.69 mm)
• Torque: 22 nm

This Green Pin® BigMouth® Bow Shackle is designed for both one-leg and multi-leg rigging systems. It finds applications in construction, marine operations, and heavy industry across Canada. The galvanized finish provides corrosion resistance for outdoor use.

The product adheres to multiple international certifications, ensuring compliance with industry standards. For procurement inquiries, use the 'Add to Quote' button to request pricing information from Vancouver Rigging Supply Ltd.
