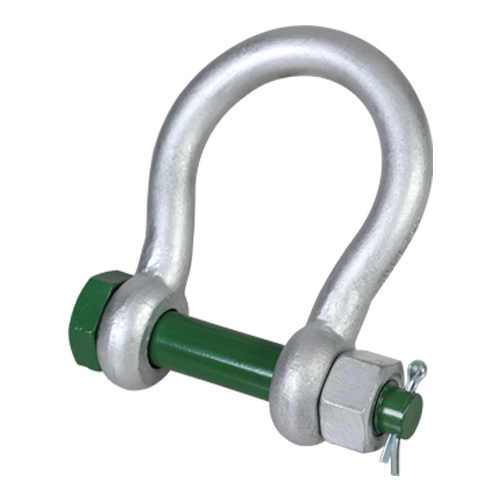

GREEN PIN BIGMOUTH BOW SHACKLE BN 1-1/2" (ASGHMB38FN)

The Green Pin® BigMouth® Bow Shackle BN 1-1/2" (ASGHMB38FN) is a grade 8 shackle engineered for applications requiring a wider mouth opening. This product, available through Vancouver Rigging Supply Ltd., is designed to connect with broader attachment points, such as pad eyes, in Canadian industrial settings.

Key Specifications:

• Working Load Limit: 16 t
• Bow Diameter: 1 1/2" (38 mm)
• Pin Diameter: 1 5/8" (41 mm)
• Eye Diameter: 3 15/32" (88 mm)
• Inside Width: 4 3/16" (106 mm)
• Inside Length: 8 1/2" (216 mm)
• Overall Length: 12 9/16" (319 mm)
• Overall Width: 9 1/4" (235 mm)
• Net Weight: 22.6 lbs (10.3 kg)

Safety Features:

• Triple Safety Mechanism: Split pin, safety bolt, and fixed nut
• Fixed Nut: Drilled through shackle nut and pin, attached with bolts and Nord-Lock® washers
• Securing Bolt: M8 thread, 2 15/16" (75 mm) length
• Torque Specification: 22 nm

Material and Finish:

• Composition: Alloy steel, Grade 8, quenched and tempered
• Surface Treatment: Hot-dipped galvanized for corrosion resistance
• Temperature Range: -20°C to +200°C

Applications:

• Industries: Construction, marine, oil and gas, mining
• Rigging Systems: Compatible with one-leg and multi-leg configurations
• Load Types: Dynamic loads and environments with extreme vibrations

Certifications:

• Meets industry standards for grade 8 shackles
• Minimum Breaking Load (MBL) equals 6 times the Working Load Limit (WLL)

For Canadian companies seeking this Green Pin® BigMouth® Bow Shackle, use the 'Add to Quote' button to request pricing and availability information from Vancouver Rigging Supply Ltd.
