PRODUCT CODE: - | PART NUMBER: -

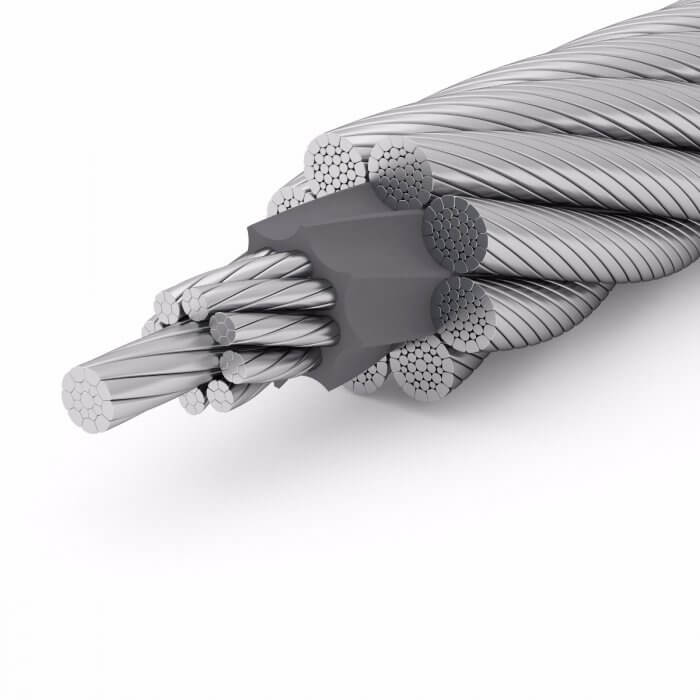

TEUFELBERGER PERFECTION M8
PERFECTION M8: Galvanized 8-Strand Steel Wire Rope for Marine Riser Tensioners
The PERFECTION M8, distributed by Vancouver Rigging Supply Ltd., serves the Canadian offshore oil and gas industry with its specialized design for marine riser tensioner (MRT) systems. This wire rope addresses the requirements of floating oil platforms, compensating for ocean wave motion and maintaining drilling rig positioning.
Technical Specifications:
- Construction: 8 x K36WS EPIWRC, RCN 13
- Diameter range: 1 1/2"" (38.10 mm) to 2 7/8"" (73.02 mm)
- Lay configuration: Ordinary or lang's lay, right or left-handed
- Finish: Galvanized
- Technologies: PLASTFILL® and SUPERFILL®
Performance Characteristics:
- Wear reduction: Eight compacted outer strands minimize rope and sheave wear
- Flexibility: Higher wire count in outer strands improves performance under reverse bending cycles
- Corrosion resistance: Galvanized finish and PLASTFILL® core lubrication
- Load distribution: SUPERFILL® compaction technology increases breaking force
Technical Data:
- Minimum breaking force (1960 N/mm²): 1,178 kN (264,825 lbs) for 1 1/2"" diameter to 4,326 kN (972,523 lbs) for 2 7/8"" diameter
- Weight: 6.50 kg/m (4.36 lbs/ft) for 1 1/2"" diameter to 24.15 kg/m (16.20 lbs/ft) for 2 7/8"" diameter
Applications in Canadian Offshore Operations:
- Floating production systems: FPSO units, semi-submersibles
- Drilling rigs: Jack-up rigs, drillships
- Subsea systems: Riser management, mooring systems
Usage Considerations:
- No swivel required: Designed for use without a rope swivel
- Environmental factors: Engineered for adverse marine conditions
- Continuous loading: Structured for constant tension applications
For detailed specifications and to request a quote for the PERFECTION M8 wire rope, click the 'Add to Quote' button on this page. Vancouver Rigging Supply Ltd. provides this product to meet the requirements of Canadian offshore oil and gas operations.
Size (inches): 1-1/2" - 2-7/8"
Weight (lbs): -
Working Load Limit (t): -
