TEUFELBERGER EVOLUTION TK27

EVOLUTION TK27 High-Performance Hoist Rope (Part #: ETK27)

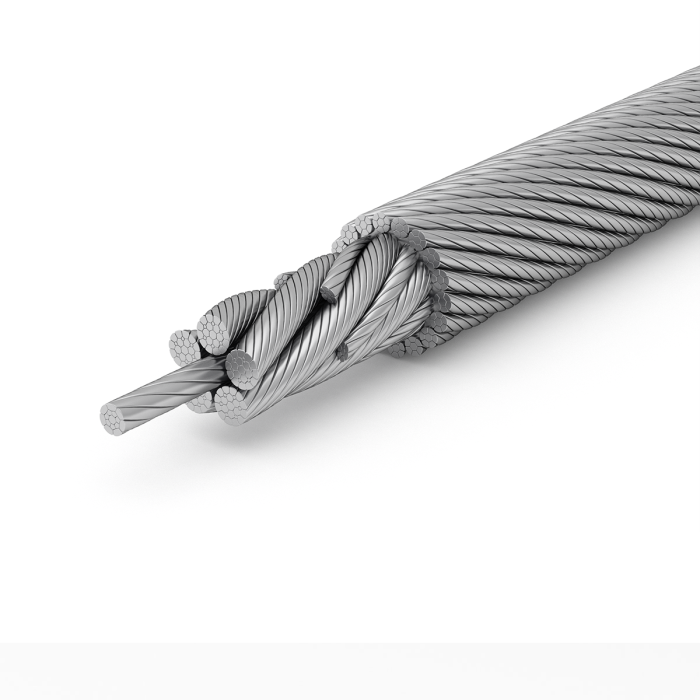

The EVOLUTION TK27 is a steel wire rope engineered for mobile and tower cranes. This product addresses the requirements of modern crane operations, including increased lifting heights and load capacities.

Technical Specifications:

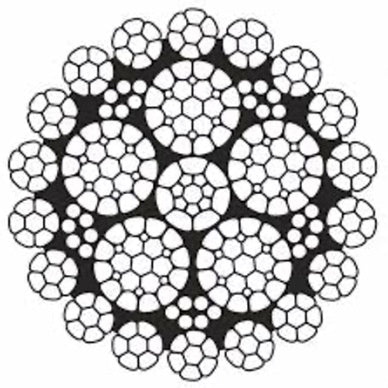

• Construction: 18xK6-IWRC(K), RCN 23-2 (16-19 mm) | 18xK7-IWRC(K), RCN 23-3 (21-42 mm)
• Diameter Range: 5/8"" to 1 5/8"" (16 mm to 42 mm)
• Lay Type: Lang lay, right or left lay

Key Features:

• SUPERFILL® Compaction: Improves wear resistance and dimensional stability
• Multilayer Spooling Capability: Maintains performance in multiple layer applications

Performance Characteristics:

• Breaking Force: Achieves 1960 N/mm² rope grade
• Rope Efficiency: Maintains performance without load
• Wear Resistance: Round rope surface with 18 compacted outer strands
• Spooling Behavior: Dimensional stability under lateral pressure
• Load Stability: Balanced construction prevents load twisting at height

Industry Applications:

• All-Terrain Cranes
• Crawler Cranes
• Tower Cranes
• Wind Turbine Installation and Maintenance
• Heavy Lifting Operations

Dimensional Data:

• 16 mm (5/8""): Weight - 1.31 kg/m (0.88 lbs/ft), Min. Breaking Force - 268 kN (60,249 lbf) at 1960 N/mm²
• 42 mm (1 5/8""): Weight - 9.05 kg/m (6.07 lbs/ft), Min. Breaking Force - 1,812 kN (407,354 lbf) at 1960 N/mm²

For complete technical specifications and to request a quote for the EVOLUTION TK27, click the 'Add to Quote' button on this page.
