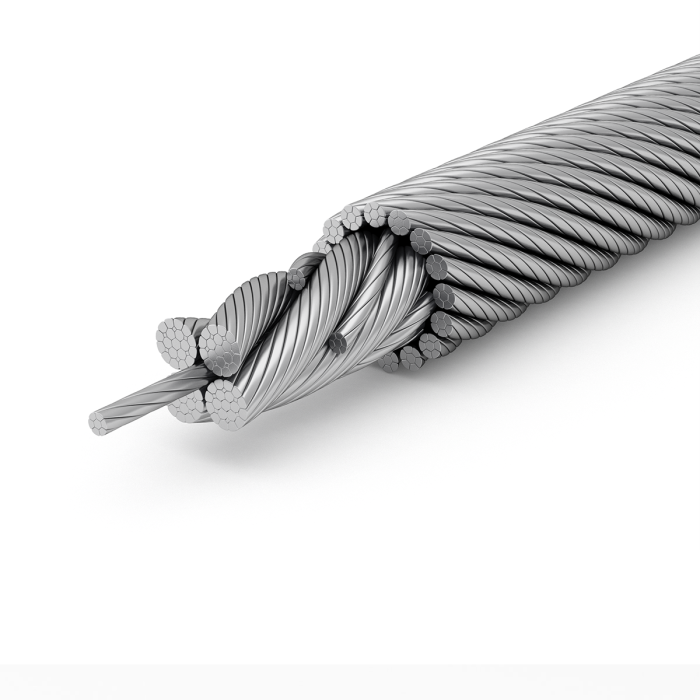

TEUFELBERGER EVOLUTION TK17
"
EVOLUTION TK17 High-Performance Steel Wire Rope (Part #: ETK17)
The EVOLUTION TK17 is a steel wire rope engineered for construction industry cranes. This product, available through Vancouver Rigging Supply Ltd. for Canadian distribution, combines flexibility with technical features for multilayer spooling applications.
Technical Specifications:
- Construction: 16 x K7 – IWRC (K), RCN 23-2
- Diameter Range: 3/8"" to 1 1/4"" (10 mm to 34 mm)
- Lay Type: Lang's lay, right or left lay
Key Features:
- SUPERFILL® Compaction: Improves wear resistance and dimensional stability
- Multilayer Spooling Capability: Maintains performance in multiple layer applications
Performance Characteristics:
- Spooling Behavior: Maintains diameter tolerances under lateral pressure
- Installation: Facilitates reeving due to high flexibility
- Torsional Behavior: Maintains stability with heavy loads and substantial lifting heights
- Wear Resistance: Advanced compacted surface for multilayer spooling applications
Industry Applications:
- Construction Cranes
- Tower Cranes
- Mobile Cranes
- Material Handling Equipment
Dimensional Data:
- 10 mm (3/8""): Weight - 0.48 kg/m (0.32 lbs/ft), Min. Breaking Force - 82 kN (18,434 lbf) at 1770 N/mm²
- 34 mm (1 3/8""): Weight - 5.62 kg/m (3.77 lbs/ft), Min. Breaking Force - 1,141 kN (256,507 lbf) at 2160 N/mm²
For complete technical specifications and to request a quote for the EVOLUTION TK17, click the 'Add to Quote' button on this page.
"Size (inches): 10MM - 34MM
Weight (lbs): -
Working Load Limit (t): -
